Wolf Safety ATEX Worklite LED Floodlights For Hazardous Areas

By Chris Dodds on 16th November, 2012

Follow @ThorneanDerrick

Hazardous Area Lighting

Wolf LED Floodlights

Wolf Safety Worklite ATEX IEC Ex Hazardous Areas

Wolf WL70, WL80 & WL85

Wolf Safety ATEX Worklite is a rechargeable LED floodlight and is CE marked to the ATEX Directive for safe use in Zones 1 and 2 potentially explosive gas, vapour, mist and dust atmospheres. The Worklite is a battery powered lamp and can last up to 24 hours on ‘low power’, depending on model.

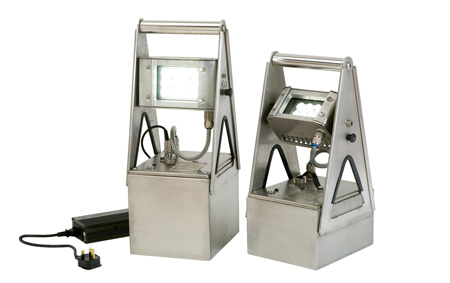

Pictured: Wolf ATEX Worklite LED Floodlight

Wolf ATEX Worklite LED Floodlight Features & Benefits

• ATEX Approved for Zone 1 explosive gas and dust atmospheres
• High power white LED beam with flood of lower level fringe light
• LED light source ‘fitted for life’, no bulb replacement required
• Long duration, up to 12 hours full power, 24 hours half power
• Robust durable stainless steel construction
• Locking pivot head to direct light
• Toughened glass lens with optional disposable lens guard
• Rechargeable high capacity battery, fully managed
• State of charge LED indication
• Supplied with a mains charger with state of charge indication, powered from 100 to 254Vac

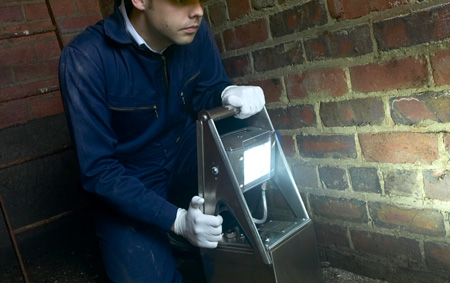

Pictured: Wolf Safety ATEX Worklite LED Floodlight Application

There are three models available for the Wolf ATEX Worklite floodlight:

1. Wolf WL-85 with a 12 LED lamp head + 1000 lumens output
2. Wolf WL-70 with a 6 LED lamp head + 500 lumens output
3. Wolf WL-80 with a 12 LED lamp head + 1000 lumens output (plus the smaller battery of WL-70 giving a more portable unit)

The battery duration of Wolf WL-85 and Wolf WL-70 are up to 12 hours on ‘high power’ and up to 24 hours on ‘low power’ and Wolf WL-80 is up to 6 hours on 'high power' and up to 12 hours on 'low power'.

Wolf Safety Worklite haxardous area floodlights are made from stainless steel and designed to withstand the harshest of environments. The ATEX floodlights have an ingress protection of IP65 (ingress of dust and water jets), making it a great choice for industrial and offshore applications.



Wolf Safety ATEX Worklite LED Floodlight Specifications

Product Reference		Wolf WL-70	Wolf WL-80		Wolf WL-85
Product Description		High Power Rechargeable Battery Worklite 6 LED	High Power Rechargeable Battery Worklite 12 LED
Code		II 2 GD Ex e ib mb IIC T4 Ex tD A21 IP65 T135°C
Type of Protection		‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tD Enclosure Protection
Area of Classification (Gas)		Zones 1 and 2, Gas Groups IIA, IIB, IIC
Area of Classification (Dust)		Zones 21 and 22
Temp. Classification  (Gas)		T4
Max Surface Temp (Dust)		T135°C
Ambient Temperature		-20°C to +40°C
Enclosure		Stainless Steel with Aluminium LED Lamp Head
Lens		Toughened Glass Lens Supplied with 3 Anti-static Lens Guards
Beam Type		Spot Beam with a Flood of Low Level Fringe Light
Light Source	Type	High Power LED
	Life	25,000hrs+ (Fitted for Life)
	Power/ Output	6 x 3 Watt LEDs / Up to 510 lm	12 x 3 Watt LEDs / Up to 1020 lm
Power Source	Part No.	W-218	W-235
	Battery Type	Rechargeable Battery, Sealed Gel Lead Acid
	Volts	12V
	Capacity	18Ah	33Ah
	Life	Up to 500 Recharge Cycles
Low Battery Indicator		Yes
Light Duration - High / Low		Up to 12 hrs / 24 hrs		Up to 6hrs / 12hrs	Up to 12 hrs / 24hrs
Weight (inc. battery)		16kg		16.5kg	23kg
Ingress Protection		IP65 to EN60529: 1992
Charger Input		100 - 254 Vac
Recharge Time		8hrs			12hrs



Video: Wolf Safety Temporary ATEX & IECEx Hazardous Area Lighting
