Wolf LL-500 LinkEx Portable Fluorescent Leadlamp For Hazardous Area Zones 1, 2, 21 & 22

By Chris Dodds on 20th August, 2012

Follow @ThorneanDerrick

Hazardous Area Lighting

Wolf Temporary Luminaires & Floodlites

Wolf LinkEx Portable Fluorescent Leadlamp - LL500

Wolf LL500 range of portable fluorescent leadlamps are suitable for hazardous area applications where temporary lighting is required for extended periods of time. Wolf LL-500 leadlamps are CE marked to the ATEX Directive and IECEx Certified for safe use in Zones 1 and 2 potentially explosive gas, vapour, mist and dust atmospheres.

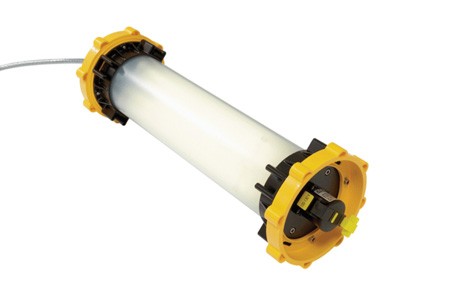

Pictured: Wolf LL500 LinkEx Portable ATEX Fluorescent Leadlamp

The Wolf LL-500 range of ATEX leadlamps are available in a wide range of voltages from 24V to 254V. This portable lighting is quick and easy to install and the robust design allows the lights to be connected together in an explosive atmosphere while energised.



Wolf LL500 LinkEx Portable Fluorescent Leadlamp Range

Wolf LL532	230V	2 x 36W	10m SY Cable	ATX Plug	Non Linkable
Wolf LL533	230V	2 x 36W	5m SY Cable	ATX Plug and Socket	Linkable
Wolf LL540	110V	2 x 36W	5m SY Cable	ATX Plug and Socket	Linkable
Wolf LL540/E	110V	2 x 36W	5m SY Cable	ATX Plug and Socket	Linkable Emergency
Wolf LL560	110V	4 x 36W	10m SY Cable	ATX Plug and Socket	Linkable
Wolf LL524	24V	2 x 36W	10m SY Cable	ATX Plug	Non Linkable
Wolf LL524/360/20	24V	2 x 36W 360	20m SY Cable	ATX Plug	Non Linkable
Wolf LL540MOD	110V	2 x 36W	5m SY Cable	ATX Plug and Socket	Linkable - NATO



Pictured: Wolf LL500 LinkEx Portable Fluorescent Leadlamp Application



Wolf LL500 LinkEx Portable Fluorescent Leadlamp Features

• ATEX and IECEx Certified for Zone 1 & 2 explosive gas and dust atmospheres
• Fitted with plugs and sockets to link in series
• Twin or quad lamp configuration
• Compact & robust design
• Wide voltage range 24V - 254V
• Wolf LL500 uses standard compact fluorescent lamps for ease of maintenance
• Control ballast incorporates 'End of Life' protection circuit
• Integrated Unistrut compatible mounting points
• Emergency version available
• Industrial version available
• Weight 2.7kg - 5.5kg

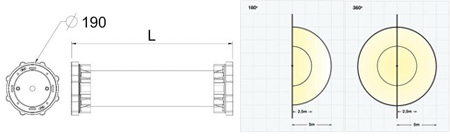

• Length 0.43m - 0.82m
• Ingress Protection IP66/67/68
• Up to 10,000 hrs
• Output 2400 lumens - 11600 lumens





• Further Reading
