Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX





The Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX is CE marked to the 94/9/EC ATEX Equipment Directive, allowing safe use in Zone 1 (Cat 2) IIC potentially explosive gas, vapour, mist and dust atmospheres, where a T3/T4 temperature class permits.

The Wolf LinkEx portable fluorescent leadlamps have a rugged and compact design and are available with twin side by side forward facing, or quad back to back energy efficient fluorescent lamp combinations in a wide range of voltages (24V – 254V).

T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX - Feaures & Benefits

  • ATEX and IECEx Certified for Zone 1 & 2 explosive gas and dust atmospheresWolf Safety
  • Fitted with plugs and sockets to link in series
  • Twin or quad lamp configuration
  • Compact & robust design
  • Wide voltage range 24V - 254V
  • Uses standard compact fluorescent lamps for ease of  ATEXmaintenance
  • Control ballast incorporates 'End of Life' protection circuit
  • Integrated Unistrut compatible mounting points
  • Emergency version available
  • Industrial version available



Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX - Models Available

  • LL-532
  • LL-533
  • LL-540
  • LL-540/E
  • LL-560
  • LL-524
  • LL-524/360/20
  • LL-540MOD

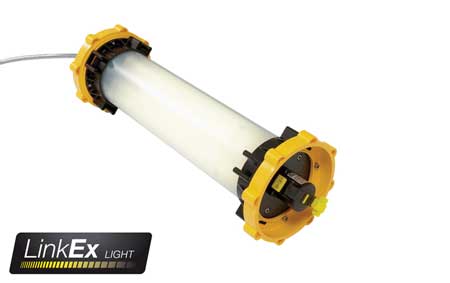

Pictured: Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX

Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX



ATEX Certified Leadlamps
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations



Wolf LinkEx LL500 Portable Fluorescent Leadlamp ATEX - Specification

Wolf Safety Lamp Reference
Wolf LL500
Product description
LinkEx™ Portable Fluorescent Leadlamp
Code
II 2 GD Ex emb IIC T3/T4 Ex tD A21 IP66/67/68 T100°C II 2 GD Ex embd IIC T3/T4 Ex tD A21 IP66 T100°C (Linkable)
Type of Protection "e" increased safety, "m" encapsulation, "d" flameproof
Area of classification (Gases)
Zones 1 & 2, Gas Groups IIA, IIB, IIC
Temp. classification (Gases)
T3
Ambient temperature
2 x CFL Unit: (-20°C to +44°C) 4 x CFL Unit: (-20°C to +35°C)
Max Surface Temp. (Dust) 100°C
Area of Classification (Dust) Zones 21 & 22
Certificate
SIRA08ATEX3098, IECEx SIR 10.0121
Enclosure
Polymer
Lens
Polycarbonate with Anti-Static Coating
Beam type
Wide Angle White Area Light High Output, High Efficiency, Low Glare
Light source: Type
Standard 2G11 CFL Compact Fluorescent
Life
100,000+ hrs
Power 2 x 18W 2 x 36W 4 x 36W
Standard Standard 360° Emergency Standard
32W 62W 70W 124W
Output 5200lm
Voltage 220 - 254V AC/DC  - -
110 - 130V AC/DC -
42 - 52V AC/DC  - - - -
24 - 28V AC/DC - - -
Weight 2.7kg 4.1kg 4.6kg  4.3kg 5.5kg
Length 0.43m 0.58m  0.84m 0.82m
Ingress protection
IP66/67/68 (3M for 30 Minutes)

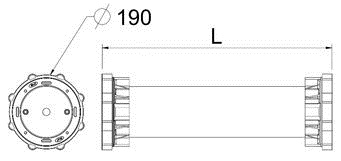

Wolf LinkEx Portable Fluorescent Leadlamp – Product Dimensions

Wolf LinkEx Portable Fluorescent Leadlamp  Product Dimensions

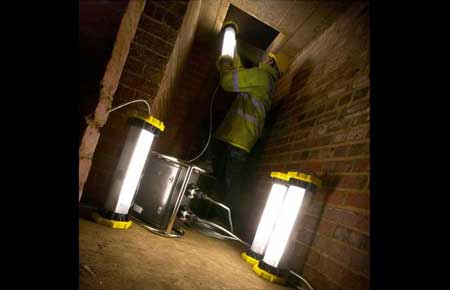

Pictured: Wolf LinkEx LL500

Wolf LinkEx LL500
