Wolf Safety ATEX LED HT-400 Headtorch for Hazardous Areas Zone 1, Zone 2, Zone 21 & Zone 22

By Chris Dodds on 7th August, 2012

Follow @ThorneanDerrick

Hazardous Area Lighting

ATEX Certified for Hazardous Areas Zone 1 & Zone 2

Wolf Safety ATEX LED HT-400 Headtorch

Wolf Safety ATEX LED HT-400 Headtorch is an ultra small primary cell powered head lamp ideal for hands free lighting and with a high power LED light source. The HT-400 headtorch is approved for safe use in Zones 1 & Zones 2 potentially explosive gas and Zones 21 and 22 dust atmospheres.

The Wolf HT-400 only weighs 90 grams including batteries and is made using robust, highly durable, high impact thermoplastic materials, and fitted with a shatterproof polycarbonate lens. The tilt adjustment mechanism allows the user to angle the light and the bespoke optics deliver a broad spot beam suitable for close up hands free tasks.

The HT-400 ATEX LED headtorch has up to 75 lumens of light output, with an optimum light duration of approximately 8.5 hours from a set of three AAA alkaline cells.



Wolf Safety HT400 LED ATEX Headtorch Features & Benefits

• ATEX Directive compliant
• IECEx Scheme certified
• Zone 1 explosive gas, vapour and mist and Zone 21 dust certified
• T4 temperature class
• High Power LED light source
• Lightweight, ergonomic design
• Single handed switching
• Hands free operation
• IP66 water and dust tight
• Adjustable, removable headband
• Supplied with helmet clips for hard hat use

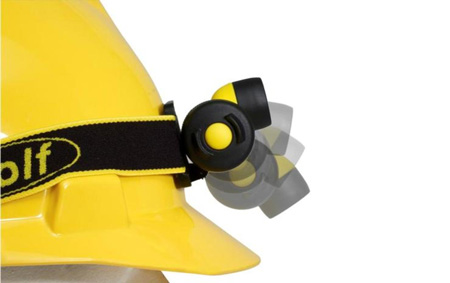

• Tilt adjustment for light direction



Wolf Safety ATEX LED HT-400 Headtorch Specifications

Product Description		ATEX LED Headtorch Mini - Zone 1
Area of Classification	Gas	Zones 1 and 2, Gas groups IIA, IIB, IIC
	Dust	Zones 21 and 22
Ambient Temperature		-20°C to +40°C
Light Duration		Up to 8.5 hours
Ingress Protection		IP66
Weight (inc. cells)		0.090Kg

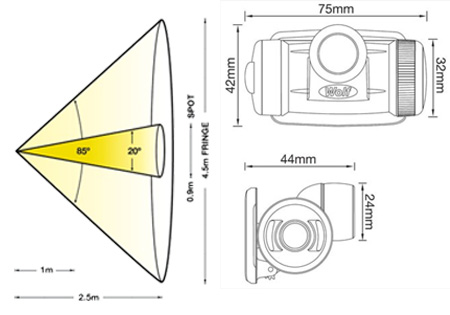

Beam Type		Broad Spot with Wide Angle Fringe Light
