Vantrunk Speedway Cable Ladder System Installed at BNG Technology Centre

By Chris Dodds on 20th August, 2012

Follow us on LinkedIn

Vantrunk Speedway Cable Ladder System Installed at BNG Technology Centre

Cable Containment

Vantrunk Cable Ladder



Between 2001 and 2002 Vantrunk Limited supplied its cable management systems to the BNFL Technology Centre at Sellafield Cumbria. The centre comprises integrated state of the art facilities fully supporting activities of scientists, engineers and technologists.

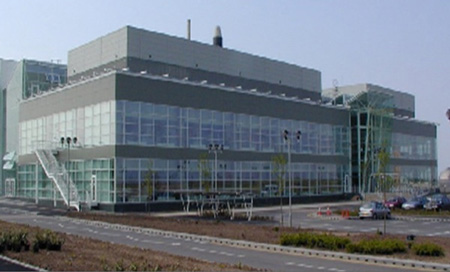

Pictured: BNFL Technology Centre, Sellafield Cumbria

BNFL Technology Centre, Sellafield Cumbria

For this project Vantrunk Limited provided pioneering and cost effective engineering solutions to suit the requirements of the client and engineering contractor. Vantrunk Limited designed and manufactured a bespoke cable ladder system which did not have any slotting to ensure no components fell into the high tech laboratories or radioactive areas

The Ladder System was fully enclosed with Close Fitting Speedway Covers on both the top and the bottom of the Speedway Cable Ladder offering complete mechanical and environmental protection.

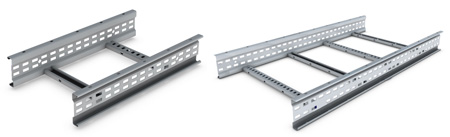

Pictured: Vantrunk Speedway Cable Ladder

Vantrunk Speedway Cable Ladder

Vantrunk Speedway Straight Cable Ladder is available in standard widths of 150mm, 300mm, 450mm, 600mm, 750mm, 900mm & 1050mm. Other widths from 100mm to 1500mm in 50mm increments are available to order. The cable ladder systems are manufactured in either 1.5mm or 2.0mm material gauges as standard, after taking into consideration the environmental conditions into which the system is being installed.

Vantrunk designed and manufactured a unique Cable Tray Design for this project which included a special return flange design and an internal heavy duty coupler mechanism.

As well as designing and manufacturing the bespoke cable management products, Vantrunk also supplied AMEC with products from its standard product range.

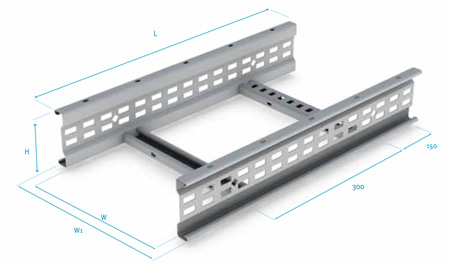

Pictured: Vantrunk Speedway SW4 Cable Ladder

Vantrunk Speedway SW4 Cable Ladder

Vantrunk Speedway SW4 Cable Ladder Specifications
Part No.

No.of Rungs

Dimensions Weight
W W1 L H
SW4/SL3/150/O 10 150mm 190mm 3000mm 104mm 11.93kg
SW4/SL3/300/O 10 300mm 340mm 3000mm 104mm 13.55kg
SW4/SL3/450/O 10 450mm 490mm 3000mm 104mm 15.17kg
SW4/SL3/600/O 10 600mm 640mm 3000mm 104mm 16.79kg
SW4/SL3/750/O 10 750mm 790mm 3000mm 104mm 21.12kg
SW4/SL3/900/O 10 900mm 940mm 3000mm 104mm 23.28kg
SW4/SL3/1050/O 10 1050mm 1090mm 3000mm 104mm 25.44kg

O=Select a finish

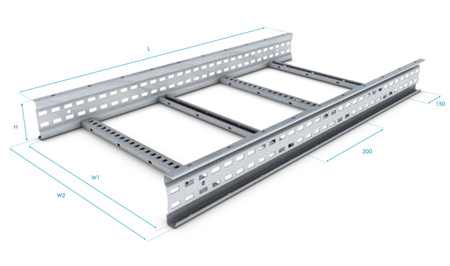

Pictured: Vantrunk Speedway SW5 Cable Ladder

Vantrunk Speedway SW5 Cable Ladder

Vantrunk Speedway SW5 Cable Ladder Specifications
Part No.

No.of Rungs

Dimensions Weight
W W1 L H
SW5/SL3/150/O 10 150mm 200mm 3000mm 125mm 18.53kg
SW5/SL3/300/O 10 300mm 350mm 3000mm 125mm 20.15kg
SW5/SL3/450/O 10 450mm 500mm 3000mm 125mm 21.77kg
SW5/SL3/600/O 10 600mm 650mm 3000mm 125mm 23.40kg
SW5/SL3/750/O 10 750mm 800mm 3000mm 125mm 27.72kg
SW5/SL3/900/O 10 900mm 950mm 3000mm 125mm 29.88kg
SW5/SL3/1050/O 10 1050mm 1100mm 3000mm 125mm 32.05kg

O=Select a finish

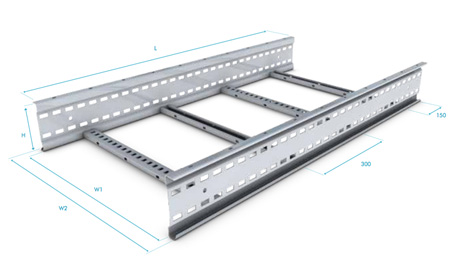

Pictured: Vantrunk Speedway SW6 Cable Ladder

Vantrunk Speedway SW6 Cable Ladder

Vantrunk Speedway SW6 Cable Ladder Specifications
Part No.

No.of Rungs

Dimensions Weight
W W1 L H
SW6/SL3/150/O 10 150mm 200mm 3000mm 150mm 21.63kg
SW6/SL3/300/O 10 300mm 350mm 3000mm 150mm 23.79kg
SW6/SL3/450/O 10 450mm 500mm 3000mm 150mm 25.95kg
SW6/SL3/600/O 10 600mm 650mm 3000mm 150mm 28.11kg
SW6/SL3/750/O 10 750mm 800mm 3000mm 150mm 30.28kg
SW6/SL3/900/O 10 900mm 950mm 3000mm 150mm 32.44kg
SW6/SL3/1050/O 10 1050mm 1100mm 3000mm 150mm 34.60kg

O=Select a finish
