Testing 5kV DC Sheath Cable Joints With SEBA KMT Tester

By Chris Dodds on 13th November, 2015

Follow @ThorneanDerrick

Image: Chris Barker (EHV Cable Jointer)

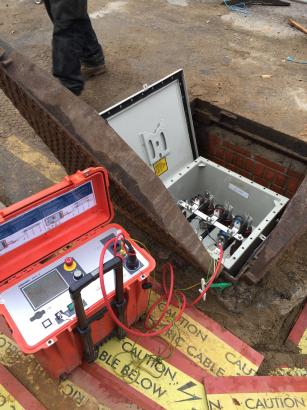

Pictured: Testing 5kV DC Sheath Cable Joints With SEBA KMT Tester



• Top Tip from Chris Barker

I use my Megger as part of my Jointing Kit now. Test before Jointing, after Jointing. If sectionalised joint test across barrier. Test bonding lead before connected and after connected. Then from link box and then after joints have been sanded and covered before complete reinstatement. Peace of mind is such a good thing knowing you have left the joint bay all clear.



• Further reading
