Pfisterer KP-Test 5 - State-Of-The-Art Voltage Detectors

By Chris Dodds on 14th August, 2012

Follow @ThorneanDerrick

Pfisterer Electrical Safety Equipment

Voltage Detectors & Testers

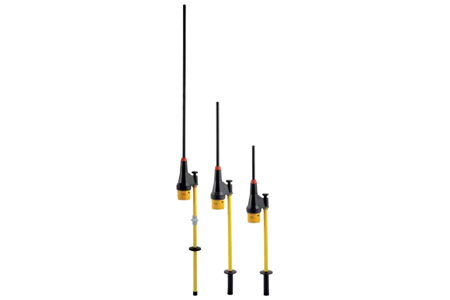

Pfisterer KP-Test 5 High Voltage Detectors

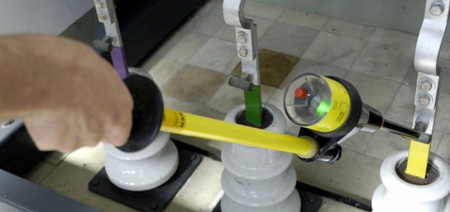

In the past, Pfisterer has carried out fundamental research in the electrical safety equipment field, which has found its way into international standards. The KP-Test 5 capacitive voltage detector can be used for indoor and outdoor medium voltage applications and indicates the presence of operating voltage when the conductor is contacted.



 Pfisterer Voltage Detectors - KP5 Test Technical Features

• Integrated audible signal for reliable voltage tests, even under noisy environmental conditions
• Extremely bright LEDs in the optimal arrangement – for increased safety
• Reliable self-test on power-up, which even checks the contact electrode extension
• Intelligent modular system which also includes very light and short voltage testers
• Indoor and outdoor use with one voltage detector device
• Optimised operator comfort – a light finger pressure and the KP-Test 5 is active
• Designed and constructed in accordance with IEC 61243-1:2003

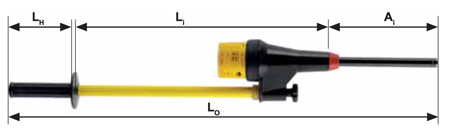

Pfisterer KP-Test 5 Voltage Detector Specifications

Part No	Nominal Voltage	A	L	LH	Lo
Pfisterer 930100003	3kV	220mm	520mm	135mm	887mm
Pfisterer 930100005	5kV	220mm	520mm	135mm	887mm
Pfisterer 930100010	10kV	220mm	520mm	135mm	887mm
Pfisterer 930110005	5kV - 6kV	393mm	520mm	135mm	1060mm
Pfisterer 930110010	10kV-1 2kV	393mm	520mm	135mm	1060mm
Pfisterer 930110013	13kV	393mm	520mm	135mm	1060mm
Pfisterer 930110020	20kV	393mm	520mm	135mm	1060mm
Pfisterer 930120003	3kV - 10kV	603mm	520mm	135mm	1270mm
Pfisterer 930120005	5kV​ - 10kV	603mm	520mm	135mm	1270mm
Pfisterer 930120010	10kV​ - 20kV	603mm	520mm	135mm	1270mm
Pfisterer 930140010	10kV​ - 30kV​	910mm	520mm	288mm	1730mm
Pfisterer 930140020	20kV​ - 36kV​	910mm	520mm	288mm	1730mm



Part No	Nominal Voltage	Li	Lo	Max. Length For Transportation
Pfisterer 9302500010051	60kV / 50Hz	830mm	1873mm	1485mm
Pfisterer 9302500010036	30kV - 60kV / 50Hz	830mm	1873mm	1485mm
Pfisterer 9302500010055	110kV / 16.7Hz and 50Hz	1802mm	3700mm	1855mm
Pfisterer 9302500010058	50kV - 110kV / 50Hz	1802mm	3700mm	1855mm
Pfisterer 9302500010061	60kV - 110kV / 50Hz	1447mm	3345mm	1500mm
Pfisterer 9302500010064	110kV / 50Hz	1802mm	3700mm	1855mm
Pfisterer 9302500010067	110kV - 220kV / 50Hz	2520mm	4418mm	2050mm
Pfisterer 9302500010070	110kV / 16.7Hz and 220kV / 50Hz	4177mm	6075mm	3130mm
Pfisterer 9302500010073	132kV / 16.7Hz and 50Hz	1802mm	3700mm	1855mm
Pfisterer 9302500010037	220kV - 380kV / 50Hz	3850mm	5748mm	2050mm
Pfisterer 9302500010078	220kV - 420kV / 50Hz	3850mm	5748mm	2050mm
Pfisterer 9302500010038	400kV / 50Hz	3850mm	5748mm	2050mm
