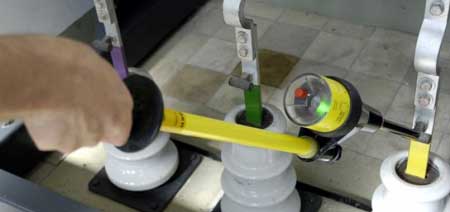

Pfisterer voltage detectors meet the highest quality and reliability requirements for working on electrical switchgear.

Pfisterer KP5 voltage detectors are used throughout the electricity utilities and provide both user comfort and safety in the one device. The optimum LED layout, integrated audible signals and innovative self-test features form the basic elements on all Pfisterer KP-Test equipment types. KP-Test 5 Series voltage detectors can be supplied as capacitive single-pole voltage detectors for a.c. voltages from 1 to 420 kV, or resistive double pole voltage detectors from 500 to 4,000 V, in various types.



Pfisterer KP-Test Voltage Detector Equipment Types:

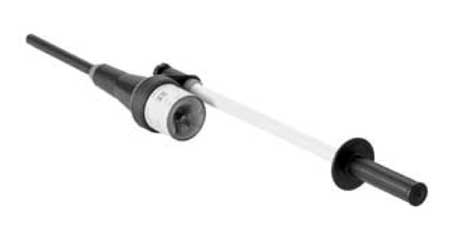

• Pfisterer Voltage Detectors KP-Test 5

- For medium voltage applications with contact electrode extension.

- Nominal voltages from 1 to 3 kV, Type S

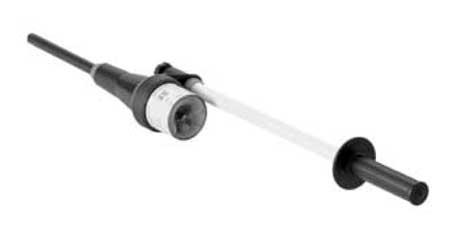

• Pfisterer Voltage Detectors KP-Test 5 Dual

- For medium voltage applications with contact electrode extension and nominal voltage range selector.
- Nominal voltages from 3 to 3 kV, Type S

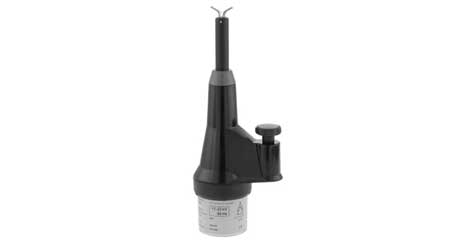

• Pfisterer Voltage Detectors KP-Test 5L

- Mainly for use on medium voltage overhead lines.

- Nominal voltages from 3 to 3 kV, Type L



• Pfisterer Voltage Detectors KP-Test 5L Dual

- Mainly for use on medium voltage overhead lines with nominal voltage range selector.

- Nominal voltages from 3 to 3 kV, Type L

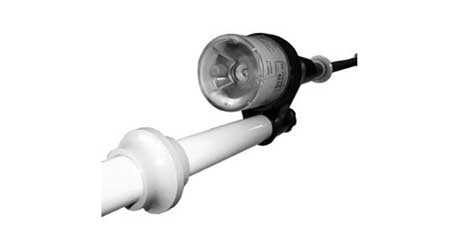

• Pfisterer Voltage Detectors KP-Test 5H

- For high voltage applications with contact electrode extension.

- Nominal voltages from 30 to 420 kV, Type S

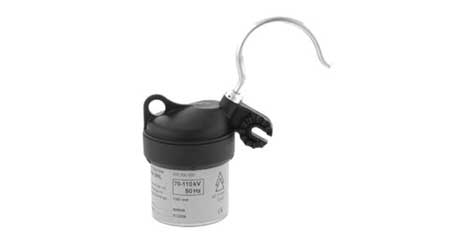

• Pfisterer Voltage Detectors KP-Test 5HL

- For use on high voltage overhead lines.

- Nominal voltages from 30 to 420 kV, Type L

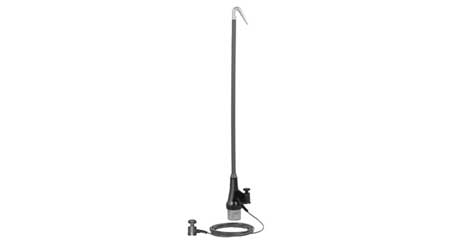

• Pfisterer Voltage Detectors KP-Test 5R DC

- For use on the catenary systems of d.c. voltage railways.

- Nominal voltages from 500 to 4,000 V d.c.



• Pfisterer Voltage Detectors KP-Test 5R DC Dual

- For use on the catenary systems of d.c. voltage railways, with nominal voltage range selector.
- Nominal voltages from 500 to 4,000 V d.c.

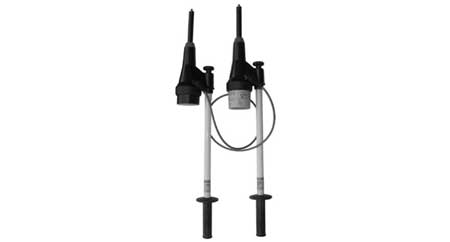

• Pfisterer Voltage Detectors KP-Test 5 DC

- For use on the catenary systems of d.c. voltage systems and railways with a third rail.

- Nominal voltages from 500 to 4,000 V d.c.

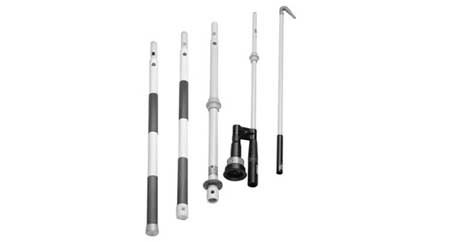

• Pfisterer Voltage Detectors KP-Test II

- For use on the catenary systems of a.c. voltage railways.

- Nominal voltages 15 kV 1. Hz and 25 kV 50 Hz





Pfisterer voltage detectors and testers from the KP-Test product family are specified worldwide.
