Seaward PrimeTest 50 Handheld PAT Tester (Portable Appliance Testing)

Electrical Testing LV HV

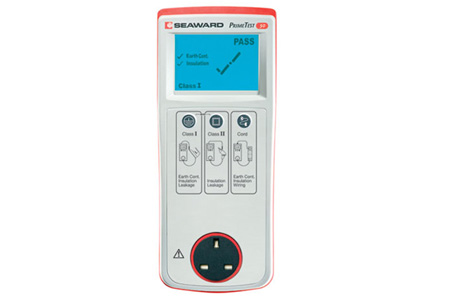

Seaward PrimeTest 50 Handheld PAT Tester



The Seaward PrimeTest 50 manual PAT testing machine is battery powered and handheld to allow for fast and efficient testing. A simple range of tests are selected at the push of a button - earthed appliance, double insulated appliance or mains cord test.

Seaward PrimeTest 50 Handheld PAT Tester

The LCD display on the Seaward PrimeTest 50 shows a clear pass or fail result. The Seaward PrimeTest 50 is a great choice for those needing one of the most reliable and easy to use PAT testing machines available. Please Note: The Seaward PrimeTest 50 does not have a backlight.



Seaward PrimeTest 50 Handheld PAT Tester Features

  • Ideal for all applications where in-house testing is being performed on a periodic basis by staff with limited experience.
  • Capable of testing Class 1, Class 2, Cables and IT equipment
  • Provides simple Pass/Fail results on a large clear display
  • Three test buttons on the Seaward PrimeTest 50 allow the user to select the appropriate test and an internal smart circuit identifies if an appliance or an extension cord is connected.
  • Hand-held & highly portable
  • Battery powered
  • PATGuard Compatible
  • Primetest 50 Users: Maintenance Staff, Schools & Colleges, Care Homes and Leisure Industry
Seaward PrimeTest 50 PAT Tester Specifications
PAT TESTS
Earth Continuity

Test Current

+/- 200mA DC

PASS/FAIL Threshold

0.2ohms

Insulation Resistance

Test Voltage

500V DC

PASS/FAIL Threshold

2Mohms

IEC Lead Test

Tests Performed

Earth Continuity

Insulation Resistance

Live, Neutral Continuity and Polarity

CIRCUIT TESTS
Power Socket Test

Input Voltage range

230V +10%, -15% AC

Indicators

Phase to Earth Voltage

Phase to Neutral Voltage

Neutral to Earth

ADDITIONAL INFORMATION

Weight & Dimensions

800g/ 26cm (l) x 10cm (w) x 5.5cm (d)

Power Source

6 x AA Batteries
