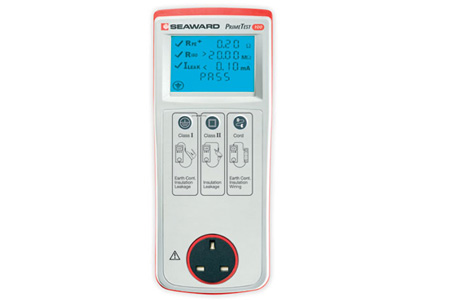

Seaward PrimeTest 100 Handheld PAT Tester



The Seaward PrimeTest 100 is a functional and diverse manual PAT tester which features 3 operational modes. The PrimeTest 100 is an ideal choice for those looking for an easy to use, electrical safety tester. Simply pushing a button will give you the option of PAT Test mode: Class I and II, IEC Lead test mode or Power Socket mode.

Seaward PrimeTest 100 Handheld PAT Tester

The large Seaward LCD display shows the test results values as well as a PASS or FAIL indication. Seaward PrimeTest 100 PAT Tester portable appliance testing equipment is battery powered and lightweight to enable quick and efficient portable appliance testing. Please note the Seaward PrimeTest 100 PAT Tester does not have a backlight.

Seaward PrimeTest 100 PAT Tester is the fastest, most compact PAT Tester available, providing accurate measurements of Earth Bond, Insulation, Leakage and mains outlet condition.



Seaward PrimeTest 100 Handheld PAT Tester Features

  • Simple 3 button operation
  • Ideal for all applications where comprehensive and regular testing as required.
  • Inbuilt socket tester which allows the user to ensure that the mains supply has been correctly wired.A Versatile Tester
  • Hand-sized
  • Highly portable tester
  • Battery powered
  • Primetest 100 Users: Maintenance staff, Schools and Colleges, Care Homes and the Leisure industry



Seaward PrimeTest 100 PAT Tester Specifications
Earth Continuity

Test Current

+/- 200mA DC

Display Range

0.00ohms – 19.99ohms

Pass Value

0.2ohms

Insulation Range

Test Voltage

500V DC

Display Range

0.20Mohms – 19.99Mohms

Pass Value

2Mohms

IEC Lead Test

Tests Performed

Earth Continuity

Insulation Resistance

Live, Neutral Continuity and Polarity

Equivalent Leakage Class I

Test Voltage

 40V, 50Hz AC Nominal

Display Range

0.10mA – 19.99 mA

Pass Value

0.75mA

Equivalent Leakage Class II

Test Voltage

40V, 50Hz AC Nominal

Display Range

 0.10mA – 19.99mA

Pass Value

0.25mA

Power Socket Test

Input Voltage Range

230V +10% - 15% AC

Indicators

Phase to Earth Voltage

Phase to Neutral Voltage

Neutral Earth

Additional Information

Weight & Dimensions

800g/26cm (I) x 10cm (w) x 5.5cm (d)

Power Source

 6 x AA Batteries



Video: Socket PAT Tester - Seaward PrimeTest 100 (Portable Appliance Testing)



Video: Seaward PrimeTest 100 PAT Tester Product Demo



Video: IEC Cord Tester - Seaward PrimeTest 100 PAT Tester
