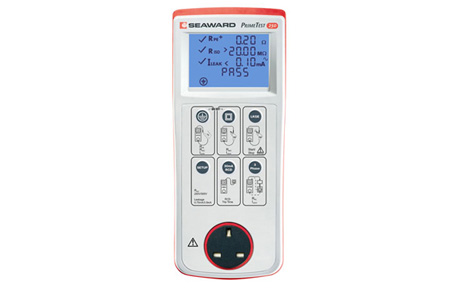

Seaward PrimeTest 250 Handheld PAT Tester



The Seaward PrimeTest 250 is a comprehensive handheld PAT tester and an engineer's ideal companion. The handheld Seaward PrimeTest 250 PAT tester features all of the portable appliance testing electrical safety tests required to meet the IEE Code of Practice including RCD trip time, protective conductor current and touch current.

The Seaward PrimeTest 250 portable appliance tester also includes a 250V DC insulation test suitable for testing sensitive electrical appliances and surge protected leads, and can test 3 phase industrial plant and equipment. Connecting the battery-powered Seaward PrimeTest 250 PAT tester to a mains supply allows protective conductor current or touch current measurements to be made automatically.

Seaward PrimeTest 250 Handheld PAT Tester Features

• Easy to use manual PAT tester
• Comprehensive range of tests
• Clear PASS/FAIL indication
• Capable of both equivalent leakage (using battery power) and protective conductor / touch current (using mains power)
• Lightweight
• Automatic test sequences
• Ideal for: In-house safety testing engineers, Electrical Contractors and Service & Maintenance Engineers



Seaward PrimeTest 250 PAT Tester Specifications

Earth Continuity
Output Current	200mA minimum into 2Ω
Test Voltage	9V DC nominal
Test Duration	2s nominal
Display Range	0.01 ohm to 19.99 ohm
Pass Value	0.2Ω
Insulation Resistance
Test Voltage	250/500VDC @1mA nominal, < 2mA (s/c)
Test Duration	2s
Display Range	0.01 Mohm to 19.99 Mohm
Pass Value	1.0 MΩ Class I 2.0 MΩ Class II
Equivalent Leakage
Test Voltage	40V Nominal AC 50Hz Open Circuit
Test Duration	2s – 30s nomina
Display Range	0.1 mA to 19.99mA
Pass Value	0.75mA CLI / 0.25mA CL II
IEC Lead Test
Test Voltage	5V DC nominal
Test Duration	Time for test (2s max)
Test	Live / Neutral Checks for o/c, s/c and crossed
Protective Conductor Current
Test Voltage	Supply Voltage, max current 13A
Test Duration	30s maximum
Display Range	0.15 mA to 9.99 mA
Pass Value	0.75mA/3.5mA
Touch Current
Test Voltage	Supply Voltage, max current 13A
Test Duration	30s maximum
Display Range	0.10 mA to 5.00 mA
Pass Value	0.25mA
3 Phase Differential Leakage Current
Test Voltage	3 phase supply voltage
Test Duration	Continuous measurement
Display Range	0.10 mA to 9.99 mA
Pass Value	3.5mA
RCD Trip Time
Test Voltage	Mains supply voltage
Test Current	10mA / 30mA rms sinusoidal
Test Current Phase	0°/180° auto switched on alternate tests
Measuring Range	0ms – 500ms
Pass Value	200ms
Power Socket Check
Input Voltage Range	225 – 254V AC max current 13A UK
Indicates configuration of voltage potential	Line potential phase to earth Line potential phase to neutral Line potential neutral to earth
