Seaward PR11 High Voltage HV Phasing Unit 11.5kV

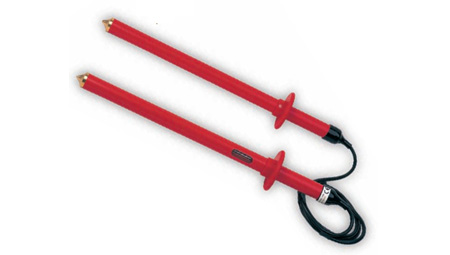

The Seaward PR 11 high voltage phasing unit is for use on earthed neutral circuits up to 11.5kV and is made up of 2 phasing rods with neon indication within a shock resistant sleeve. The Seaward PR11 has been designed for the safe detection of voltages on electrical systems.

Photos of all the Seaward High Voltage products can be seen on our Seaward High Voltage Flickr Set



Seaward PR11 HV Phasing Unit Features

• For use on 1kV to 11.5kV systems
• PVC hand guards on handles of elements
• Neon indicator enclosed in shock resistant sleeve
• Direct areas possible to all types of switch gear
• Complies with UK Electricity Council Engineering recommendation G9



Seaward PR11 High Voltage HV Phasing Unit Specifications

Maximum System Voltage	11kV
Maximum Voltage To Earth	N/A
Threshold Voltage	300V
Measuring Range	N/A
Resolution	N/A
Sensitivity	AC/DC
Circuit current (IEC 61234-2)	0.9mA nominal @11.5kV
Dielectric leakage current (IEC 61234-2)	25uA nominal @ 13.8kV
Length	330mm
Diameter	25mm
Handle length	105mm
Hand Guard Height	23.5mm
Contact Electrode Type	Domed
