Seaward Halo Hook HV High Voltage Ammeters For Overhead Powerlines

By Chris Dodds on 16th September, 2013

Follow @ThorneanDerrick

Seaward High Voltage HV Indicators & Detectors

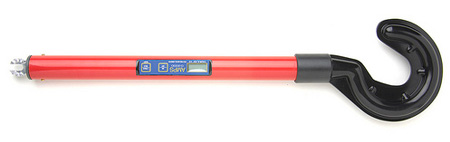

Seaward Halo Hook High Voltage HV Ammeter



Seaward Halo Hooks are HV high voltage ammeters for use by linesmen on overhead lines up to 40kV (including 33kV power lines) - HV ammeters are manufactured to provide RMS AC current measurements up to 2000 Amps on high voltage overhead power lines.

Seaward Halo Hooks are quickly and easily hooked over the overhead powerline conductor by the linesman with use of a hot stick - Seaward Halo Hook accomodate up to 50mm overhead power line conductors. Seaward Halo Hook provides effective spot load measurements on single or multi-phase high voltage overhead powerline systems to determine the load balance and are used by global power utilities.



Seaward Halo Hook High Voltage Ammeter Features:

• Seaward Halo Hook is Lightweight
• Take spot checks quickly & easily
• For use on overhead or underground applications
• Peak hold and track modes
• Auto-ranging LCD display
• True RMS reading
• Halo Hook display response time: 3 seconds to full scale
• Auto Shut Off



Seaward Halo Hook Ammeter For Overhead Powerlines Specifications

Measuring Range	0 - 2000 Amps
Accuracy	5% +/- 3 digits
System Voltage	40kV
Display	3” digit digital display
Operating Temperature	-10°C -+ 55°C
Frequency	50Hz or 60Hz
Battery	9v PP3 – 6R61
Weight	1.2kg
Jaw Size	For conductors up to 50mm



Video: Seaward Halo Hook High Voltage HV Ammeter

Seaward Halo Hook - High Voltage Overhead Line Ammeter
