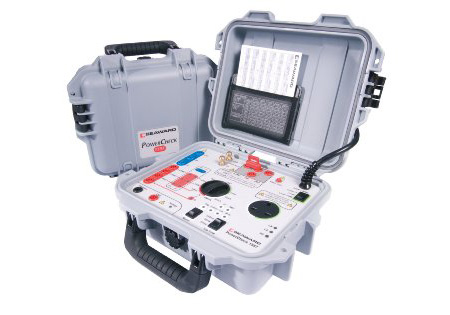

Seaward PowerCheck 1557 PAT And Installation Verification Unit



The Seaward PowerCheck 1557 is a comprehensive PAT and installation verification checkbox. The Seaward PowerCheck 1557 carries out ongoing performance checks to ensure accurate measurement between calibration intervals. The Seaward PowerCheck 1557 fully tests Earth Continuity, Insulation Resistance, RCD Trip Time, RCD Trip Current, Loop, PE Conductor Current, Touch Current and Flash tests.

Seaward PowerCheck 1557 PAT And Installation Verification Unit

The Seaward PowerCheck 1557 can be used on earth continuity or earth bond testers up to 25A and also verifies loop impedance or RCD testers on RCD protected circuits - without tripping the RCD. The Seaward PowerCheck 1557 tests to BS 7671, BS EN 61557, IET Onsite Guide and IEE Code of Practice. The Seaward PowerCheck 1557 has full instrument verification against all relevant standards and confirms performance between verifications (this is information required by NICEIC, ELECSA, NAPIT and others).



Seaward PowerCheck 1557 PAT And Installation Verification Unit Features

  • Rugged and robust
  • Tests to BS7671 / EN 61577 / IEE Code of Practice
  • Confirm performance
  • NICEIC & IET compliant
  • Colour coded for ease of use
  • Compatible with all installation and PAT testers
  • Seaward PowerCheck 1557 Ideal Users: Electricians, Service engineers and Electrical contractors



Seaward PowerCheck 1557 Installation Test Instrument Specifications
Earth Continuity Verification

Test Current

In >200mA indication

Test Voltage

4V < Un > 24V indication

Test Resistances

0.5ohm and 2ohm

Insulation Resistance Verification

Open Circuit Test Voltage

250V < Un < 375V indication

500V < Un < 750V indication

1000V < Un < 1500 indication

Test Current

 In >1mA into 1000ohm/V

Max Test Current

Ik <2mA

Test Resistances

0.25Mohm, 0.5Mohm, 1.0Mohm

Earth Loop Verification

Test Values

 Loop, Loop+1ohm, Loop+180ohm

RCD Verification

Trip Current

10mA, 30mA, 100mA

Trip Times

20ms, 40ms, 500ms

Voltage Verification

Test Voltage

240V AC rms test output

Seaward PowerCheck 1557 PAT Function Specifications
Earth Continuity Verification

Test Resistances

0.2ohm and 2ohm

Insulation Resistance Verification

Test Resistances

500kohm, 1Mohm and 2Mohm

PE Conductor Current

Test Currents

0.1mA, 0.25mA and 0.5mA

Power Socket Check

Flash Test Current

0.5mA, 1mA and 1.5mA

General

Power Supply

230V AC ±10%

Dimensions

210mm x 145mm x 85mm

Weight

1kg



Video: PAT and Installation Verification Unit - Seaward PowerCheck 1557
