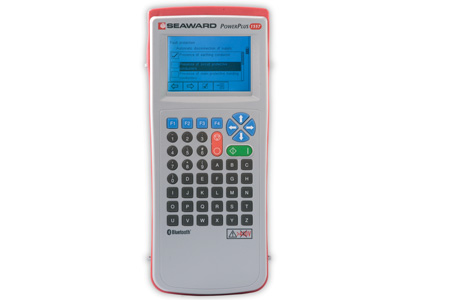

Seaward PowerPlus 1557 Fixed Installation Tester



The Seaward PowerPlus1557 automatically records test and inspection information onto built-in electronic copies of 17th edition certificates as you perform tests. The built-in certificates include Electrical Installation certificate, Periodic Inspection Report and Minor Works certificates for domestic and commercial sites.

The PowerPlus 1557 is such an intelligent machine that the onboard data validation checks for blank fields or invalid measurements ensures that only the correct information goes into the right certificate field. The easy-to-navigate Seaward PowerPlus 1557 device is a real aid to accuracy and efficiency.

With the accompanying PowerPlus PC software, the Seaward PowerPlus1557 loads 17th edition certificate information onto your PC via Bluetooth. So you can store the Seaward PowerPlus 1557 for record traceability and print directly onto pre-printed stationery. When the time comes to retest, the certificate data can simply be transferred back to the tester.


Seaward PowerPlus 1557 Fixed Installation Tester Advantages

• Combined test and inspection unit
• Fast and efficient
• Bluetooth download and upload to PC
• Future Proof New - templates can be added as new certificates emerge
• Multi-user testing
• Create Master Template Certificates



Seaward PowerPlus 1557 Fixed Installation Tester Specifications

Earth Continuity
Test Current	>200mA
Display Range	0.00ohms - 200ohms
Resolution	0.01ohms maximum
Test Lead Compensation	Null lead resistance 0.00ohms - 10.00ohms
Live Circuit Detection Test	inhibit if >30V detected
Insulation Resistance
Test Voltage	100V, 250V, 500V, 1000V
Display Range	0.00Mohms - 200Mohms
Resolution	0.01Mohms maximum
Live Circuit Detection Test	inhibit if >30V detected
Loop/Line Impedance (Non-tripping & High Current)
Supply Voltage	195 – 253V/440V, 45Hz – 65Hz
Test Current	15mA (non tripping for RCD protected circuits)
Test Current	3A (for non RCD protected circuits)
Display Range	0.01ohms - 2000ohms
Resolution	0.01ohms maximum
Loop Impedance	Phase to Earth
Line Impedance	Phase to Neutral/Phase to Phase
PFC/PSC Range	0 - 26kA
RCD Trip Time
Supply Voltage	195 - 253V, 45 - 65Hz
Test Currents	10, 30, 100, 300, 500mA
RCD Type	General (G), Selective (S), Pulsed (A), AC (AC)
RCD Trip Current (Ramp Test)
Supply Voltage	195 - 253V, 45 - 65Hz
Test Currents	10, 30, 100, 300, 500mA
Voltage/Frequency Measurement
Display Range	0 - 440V
Resolution	1V
Frequency	Measuring Range 45 - 65Hz
Phase Rotation
Displays	L1-L2-L3 for correct phase sequence
Additional Information
Compliance	IEC 61010-1 300V CAT III, EN 61557
Dimensions	260 x 100 x 55
Weight	950g
Power Supply	6 x AA NiMH Rechargeable



Video: Installation Tester - Seaward PowerPlus 1557
