Morgan Marine GRP Roadside Cabinets & Pillars for LV Distribution Projects at Scottish Water

By Chris Dodds on 20th August, 2012

Follow @ThorneanDerrick

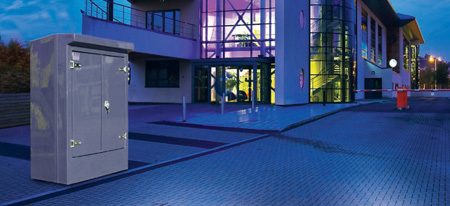

Morgan Marine Roadside GRP Cabinets



GRP Roadside Cabinets are specified according to WIMES for water industry LV electricity distribution at sewage and waste water treatment plants. The Morgan Marine GRP cabinets are approved by Thames Water, Scottish Water and Anglian Water.

T&D have recently supplied Roadside Cabinets to Scottish Water framework contractors including Barhale Construction, Byzak and Clancy Docwra.

Roadside Cabinets are specified to house and protect instrumentation, control panels, pumps and electrical equipment. Roadside Cabinets are supplied to utilities, local authorities, rail and the MOD for a wide range of low voltage electrical distribution projects.

Both single door and double door Roadside Cabinets are available with a choice of cylinder night latch lock or a hasp and staple lock as standard, other locking devices are available on request. Plywood mounting boards, ventilation and a choice of electrical items are also available to suit individual requirements.

Roadside Cabinets are available ex stock in standard colours from BS4800 range of Green (14-C-39) or Grey (10-A-07) for immediate dispatch.

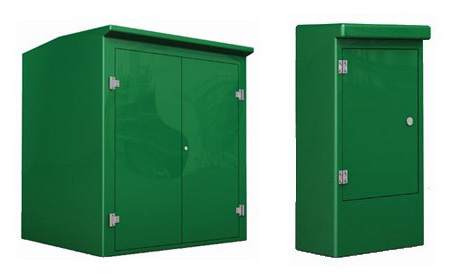

Pictured: Morgan Marine GRP Feeder Pillars Single & Double Door Torbay


Roadside Cabinets - Optional Features

• Wall Ventilation
• Alloy Locks
• Removable floor
• 18mm WBP Plywood Back Boards
• Heating & Lighting
• Accoustic Thermal Insulation
• RF Frequency Modulation
• Anti-Grafitti External Coatings

GRP Roadside Cabinets with IP54 and IP55 waterproof rating are available to suit customer specifications - cabinets provide quality, durable and corrosion resistant protection for low voltage electrical distribution, 415v to 1000 volts.

Roadside Cabinets are approved to The Loss Prevention Certification Board (LPCB) - the leading international Certification Body in the fields of security and fire protection. Feeder pillars and Roadside Cabinets are available with brick effect and natural stone finish.



Morgan Marine GRP Roadside Range Specifications

Single Door Units	Feeder Pillar	Meter Cabinet	Torbette	Double Torbay	Torbay	Type P	Type R	Type S
Width
External	340 mm	460 mm	640 mm	640 mm	640 mm	630 mm	900 mm	900 mm
Internal	330 mm	450 mm	630 mm	630 mm	630 mm	620 mm	890 mm	890 mm
Height
Maximum	860 mm	615 mm	910 mm	1135 mm	1135 mm	1165 mm	1175 mm	1175 mm
Depth
External	210 mm	300 mm	300 mm	530 mm	300 mm	370 mm	330 mm	545 mm
Internal	135 mm	265 mm	250 mm	450 mm	250 mm	320 mm	280 mm	500 mm
Maximum	210 mm	300 mm	355 mm	570 mm	355 mm	430 mm	385 mm	600 mm
Door
Clear Width	240 mm	370 mm	490 mm	490 mm	490 mm	485 mm	750 mm	750 mm
Clear Height	710 mm	520 mm	720 mm	720 mm	720 mm	710 mm	710​ mm	710​ mm
Sill
Height	95 mm	45 mm	80 mm	300 mm	300 mm	300 mm	290 mm	290 mm



• Further Reading

​Morgan Marine Roadside GRP Cabinets & Feeder Pillars - Single Door Cabinets

Morgan Marine Roadside GRP Cabinets & Feeder Pillars - Double Door Cabinets
