Morgan Marine Roadside GRP Cabinets & Feeder Pillars - Double Door Cabinets

Morgan Marine Roadside GRP Cabinets & Feeder Pillars

Double Door Cabinets



Morgan Marine Roadside GRP Double Door Cabinets & Feeder Pillars are installed in the water, power, gas and communications industry - all Morgan Marine Double Door cabinets and feeder pillars are supplied with tower bolts and the four larger kiosks in the cabinet range have door-stays fitted as standard.

Morgan Marine GRP Double Door cabinets and feeder pillars are available with a choice of cylinder night latch lock or a hasp and staple fitting - the feeder pillar cabinets can be supplied with plywood back boards, basic electrical fitting and ventilation options.

Typical applications for GRP feeder include air quality monitoring, pumping stations and MCC protection.

Selection Table : Morgan Marine GRP Double Door Cabinets & Feeder Pillars

Model Type	Width	Height	Depth	Door	Morgan Marine  GRP Cabinet
Morgan Marine O	1065mm External 1010mm Internal	1270mm	460mm External 400mm Internal	860mm Clear Width 860mm Clear Height
Morgan Marine M	1065mm External 1010mm Internal	1275mm	660mm External 580mm Internal	860mm Clear Width 860mm  Clear Height
Morgan Marine J	1410mm External 1390mm Internal	1515mm	660mm External 605mm Internal	1165mm Clear Width 1220mm  Clear Height
Morgan Marine H	1760mm External 1730mm Internal	1580mm	790mm External 730 Internal	1485mm Clear Width 1310mm Clear Height
Morgan Marine G	2010mm External 1990mm Internal	1585mm	800mm External 740mm Internal	1730mm Clear Width 1305mm  Clear Height
Morgan Marine F	2010mm External 1980mm Internal	2255mm	1250mm External 1180mm Internal	1735mm Clear Width 2000mm  Clear Height
Morgan Marine E	2010mm External 1890mm Internal	2255mm	1750mm External 1680mm Internal	1735mm Clear Width 2000mm Clear Height



Morgan Marine Roadside GRP Cabinets options : i) Mounting board ii) Ventilation iii) Additional insulation iv) NICEIC electrical installation v) Stainless steel feeder pillar or cabinet door vi) Integral floors vii) Multiple lock choice viii) Viewing windows ix) Cat flap and cable gland plates

Morgan Marine Roadside GRP Cabinets installation : standard feeder pillars or cabinets have an open base with an intgeral flange. Integral composite floors are available (standard on GRP Type P, GRP Torbette and GRP Meter Cabinet).

Standard fixing of the feeder pillar is thorugh reinforced internal flanges by rawl bolts onto prepared concrete bases. Morgan Marine Roadside feeder pillars and cabinets (single door) can be wall mounted.

The full range of Morgan Marine Cabinets are available in :

• GRP
• Steel (2mm Pre Galvanised Steel)
• Steel (3mm Pre Galvanised Steel)
• Steel (5mm Pre Galvanised Steel)
• Stainless Steel
• Aluminium

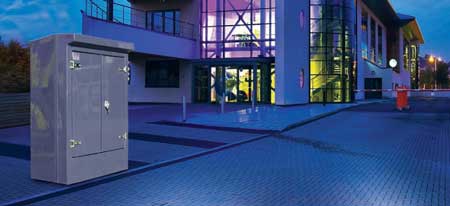

Pictured : GRP Feeder Pillars, Morgan Marine Double Door
