Morgan Marine Roadside GRP Cabinets & Feeder Pillars - Single Door Cabinets

Morgan Marine Roadside GRP Cabinets & Feeder Pillars

Single Door Cabinets



Morgan Marine Roadside GRP Cabinets & Feeder Pillars are designed to house and protect instrumentation, pump sets and control panels - GRP cabinets are installed by utilities (electric, gas and water), local authorities, construction and rail contractors.

GRP cabinets are available with a choice of a cylinder night latch lock or a hasp and staple and can be pre-fitted with plywood backboard for mounting equipment.

Morgan Marine Roadside GRP Cabinets (Standard) are manufactured from Single Skin GRP (Glass Reinforced Polymer) using self-extinguishing fire retardant resin to Class 2 BS 476 Part 2.

GRP cabinets are low maintenance and non corrosive suitable for outdoor installation. Standard colours of stock GRP cabinets available are BS 5252 14-C-39 Green and 10-A-07 Grey - complete BS5252 or RAL colour range is available.

Selection Table : Morgan Marine GRP Single Door Cabinets & Feeder Pillars

Model Type	Width	Height	Depth	Door	Morgan Marine  GRP Cabinet
Morgan Marine P	630mm External 620mm Internal	1165mm	370mm External 320mm Internal	485mm Clear Width 710mm Clear Height
Morgan Marine R	900mm External 890mm Internal	1175mm	330mm External 280mm Internal	750mm Clear Width 710mm  Clear Height
Morgan Marine S	900mm External 890mm Internal	1175mm	545mm External 500mm Internal	750mm Clear Width 710mm  Clear Height
Torbay	640mm External 630mm Internal	1135mm	300mm External 250mm Internal	490mm Clear Width 720mm Clear Height



Morgan Marine Roadside GRP Cabinets options : i) Mounting board ii) Ventilation iii) Additional insulation iv) NICEIC electrical installation v) Stainless steel feeder pillar or cabinet door vi) Integral floors vii) Multiple lock choice viii) Viewing windows ix) Cat flap and cable gland plates

Morgan Marine Roadside GRP Cabinets installation : standard feeder pillars or cabinets have an open base with an intgeral flange. Integral composite floors are available (standard on GRP Type P, GRP Torbette and GRP Meter Cabinet). Standard fixing of the feeder pillar is thorugh reinforced internal flanges by rawl bolts onto prepared concrete bases. Morgan Marine Roadside feeder pillars and cabinets (single door) can be wall mounted.

The full range of Morgan Marine Cabinets are available in :

• GRP
• Steel (2mm Pre Galvanised Steel)
• Steel (3mm Pre Galvanised Steel)
• Steel (5mm Pre Galvanised Steel)
• Stainless Steel
• Aluminium

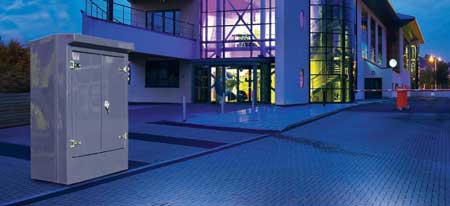

Pictured : GRP Feeder Pillars, Morgan Marine Single Door

Morgan Marine Roadside GRP Cabinets & Feeder Pillars - Single Door Cabinets
