Ripley Utility Tool WS 40 Motorized Semi-Con URD Shield Removal Tool

By Chris Dodds on 12th February, 2013

Follow @ThorneanDerrick

Ripley Cable Preparation & Stripping Tools

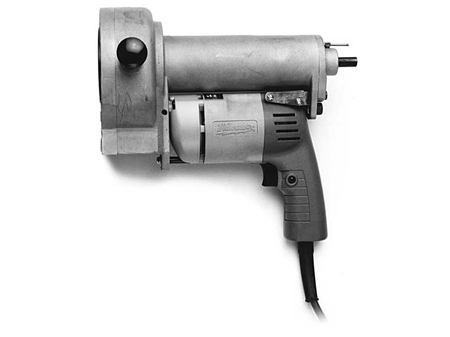

Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal



Ripley Utility Tool WS 40 is a cable preparation tool for removal of "bonded" semi-con shield on 5kV to 34.5 KV high voltage cables.

Ripley WS 40 Motorised Semi-Con URD Shield Removal Tool Features

• For removal of “bonded” semi- con shield on 5 to 34.5 KV cables
• .625 to 1.875 in. (15.88 to 47.63 mm) cable O.D
• For shaving semi-con shields off XLPE, polyethylene and EPR
• Master shaving bushings and adapter sleeves are sold separately
• Available in 115 VAC
• Length: with master bushing – 12 in. (305 mm)
• Weight: WS 40 – 13 lb (5.90 Kg); Master shaving bushing – 1lb (454 g); Adapter sleeve – 4oz (113.5 g)
• WS 40 115 VAC Part No.: 17900



Ripley WS40 Motorised Semi-Con URD Shield Removal Tool Specifications

Master Shaving Bushing	Outer Diameter Over Semi-Con
MSBA	15.24mm - 22.48mm
MSBB	21.34mm - 28.96mm
MSBC	27.81mm - 35.05mm
MSBD	33.91mm - 37.72mm
MSBD-1	37.97mm - 41.53mm
MSBE	39.62mm - 41.91mm
MSBE-1	42.16mm - 48.39mm
