Ripley WS 40

Motorised Semi-Con URD Shield Removal​

Ripley WS 40 Motorised Semi-Con URD Shield Removal are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 40 is used for the removal of bonded semi-con shield on 5-34.5kV cables with an outer diameter of 0.625-1.875in (15.88-47.63mm).

The WS 40 can shave semi-shields off from XLPE, polyethylene & EPR insulation.

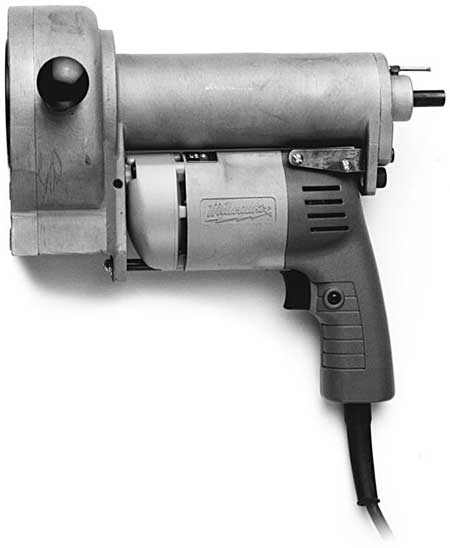

Pictured: Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal

Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal

Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal Specifications

  • Length: 12 in (305mm) with master bushing
  • Weight: WS 40 - 13lb (5.90kg), Master shaving bushing - 1lb (454g), Adapter sleeve - 4oz (113.5g)
  • Made in the USA
  • Master shaving bushings and adapter sleeves are sold separately
  • Available in 115 VAC
  • WS 40 115 VAC Part No: 17900
Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal - Product Range
Master Shaving Busing Outer Diameter Over Semi-Con Replacement Blade
MSBA 0.600-0.885 in / 15.24-22.48mm CB 43 (Part No 17918)
MSBB 0.840-1.140 in / 21.34-28.96mm CB 43 (Part No 17918)
MSBC 1.095-1.380 in / 27.81-35.05mm CB 43 (Part No 17918)
MSBD 1.335-1.485 in / 33.91-37.72mm CB 43 (Part No 17918)
MSBD-1 1.495-1.635 in / 37.97-41.53mm CB 43-1 (Part No 17951)
MSBE 1.560-1.650 in / 39.62-41.91mm CB 43-1 (Part No 17951)
MSBE-1 1.660-1.905 in / 42.16-48.39mm CB 43-2 (Part No 17952)

Video: Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal

Adobe Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal - Sizing Sheet

Adobe Ripley Utility Tool WS 40 Motorised Semi-Con URD Shield Removal - Spec Sheet
