Ripley WS76 - Bonded Semi-Con Screen Scoring Shaving Tool

By Chris Dodds on 10th January, 2013

Follow @ThorneanDerrick

HV Cable Preparation & Stripping Tools

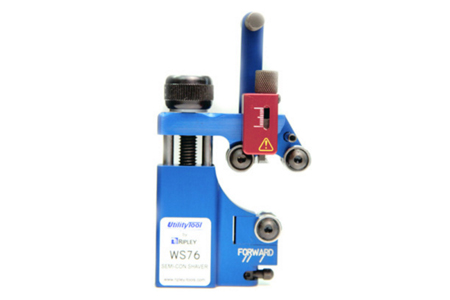

Ripley WS76: Bonded Semi-Con Screen Scoring Tool



Ripley WS76 semi-con scoring tool shaves bonded semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cable. This semi-con shaving tool shaves 11kV, 15kV, 33kV and 35kV screened power cables.

Ripley WS76 Semi-con Shaving Tool Features

• Shaves 15kV - 35kV cable with semi-con diameters from 18mm to 60mm
• Accurate semi-con removal within 25mm of the jacket in forward position
• Reverse feature accurately removes semi-con shield within 7mm (spiral action)
• Precision ground blade provides a 20ž chamfer cut finish at the semi-con end
• Precision blade adjustment in 0.1mm increments
• Thumb switch to allow easy transition from spiral shave to square cut finish without requiring an additional stop device
• Easy blade replacement without the need for additional tools



Ripley WS76 Semi-con Shaving Tool Specifications

Product No.	Ripley WS76 (with case 43560)
Length	140.3mm
Weight	454g

Ripley Utility Tool cable preparation tools are used to cable joint, splice and terminate low LV and high HV power transmission and distribution cables and overhead lines. Riple Tools enable accurate removal of insulation, semi-conductive screen, outer cable sheath and other cable layers to produce consistent, uniform preparation of cable ends for splicing and termination by trained high voltage cable jointers and linesmen.



Video: Ripley Utility Tool Semi Con Shaving Tool (WS 76)
