Shrink Polymer Systems Zero Halogen Rail Cable Joints - London Underground Limited Approved

Fire Resistant Cable Joints

SPS Zero Halogen, Flame Retardant Heat Shrink Cable Jointing Kits


Shrink Polymer Systems are the only company to manufacture Fully Tested and Approved Underground Cable Joints which have been fire tested to the latest London Underground standards 2-0100-002.

The Shrink Polymer Systems range of zero halogen cable joints for limited fire hazard cables is the only rail cable jointing system to be approved by Transport for London.

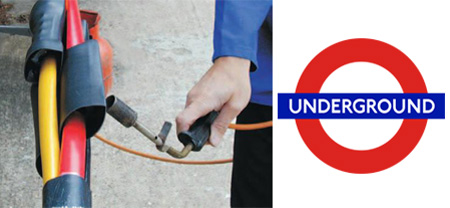

Shrink Polymer Systems Low Voltage Zero Halogen Cable Joints


The Shrink Polymer Systems range of zero halogen cable joints are suitable for both single and multicore low smoke zero halogen cables and are the only cable joint that should be installed on the underground rail network below ground in tunnels, stations and in Section 12 areas.

The Shrink Polymer Systems range of zero halogen cable joints for limited fire hazard cables can be designed to suit most LV cables used on the underground network.

SPS Low Voltage Zero Halogen Cable Joints Features

  • Fire tested and compliant with London Underground standards 2-0100-002 or the fire safety of materials and E4156 for the cable standard
  • Slim profile and unlimited shelf life complete with range taking mechanicalshearbolt connectors if required
  • Full range of cable joints available for all cable types including power and multicore cables
SPS Zero Halogen Cable Joints For Fire Hazard Cables Specifications
Joints To Suit Single Or 2/3/4 Core XLPE / EPR Cables
Part Number Cable Range Voltage
SPS SPA NHF 1.5-2.5- 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 4-6- 4mm² - 6mm² 600V / 1000V
SPS SPA NHF 10-16- 10mm² - 16mm² 600V / 1000V
SPS SPA NHF 25-50- 25mm² - 50mm² 600V / 1000V
SPS SPA NHF 70-95- 70mm² - 95mm² 600V / 1000V
SPS SPA NHF 120-185- 120mm² - 185mm² 600V / 1000V
SPS SPA NHF 240-300- 240mm² - 300mm² 600V / 1000V
SPS SPA NHF 400-630- 400mm² - 630mm² 600V / 1000V
SPS SPA NHF 800-1000- 800mm² - 1000mm² 600V / 1000V
Joints To Suit Multicore / Multipair XLPE / EPR Cables
SPS SPA NHF 1.5-2.5-5 5 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-7 7 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-12 12 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-19 19 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-27 27 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-37 37 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-48 48 Core 1.5mm² - 2.5mm² 600V / 1000V
SPS SPA NHF 1.5-2.5-61 61 Core 1.5mm² - 2.5mm² 600V / 1000V

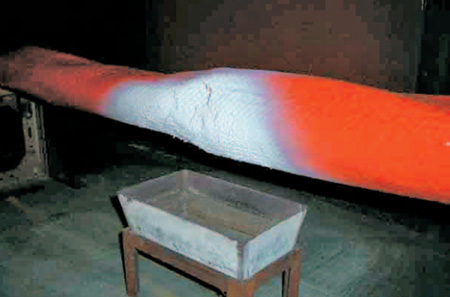

SPS LV Zero Halogen Cable Joints For Fire Resistant Cables

Link-Up

T&D are Link-up Registered and Approved Vendors to Network Rail and TfL London Underground (LU).
