Prysmian MPJEM-U Low Voltage Industrial Cable Joint Kits for Unarmoured Cables

By Chris Dodds on 20th September, 2012

Follow @ThorneanDerrick

Low Voltage LV Resin Cable Joints

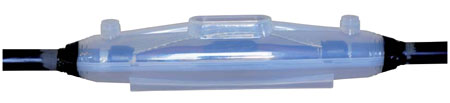

Prysmian MPJEM-U Low Voltage Industrial Cable Joint Kits for Unarmoured Cables



Prysmian MPJEM-U low voltage straight resin cable joints are suitable for LV jointing unarmoured XLPE and polymeric cables with copper conductors from 1.5sqmm-300sqmm.

Prysmian MPJEM-U Low Voltage  Industrial Cable Joints Features

• Low Hazard Isocynate free JEM resin
• Transparent injection moulded polypropylene shells up to size 4 and vacuum formed clear HIPS for the larger sizes
• Slim-line design for use with compression connectors
• Tested and approved to BS EN 50393 & ENA ER C81

Prysmian MPJEM-U LV Industrial Cable Joints For Unarmoured Cables Data

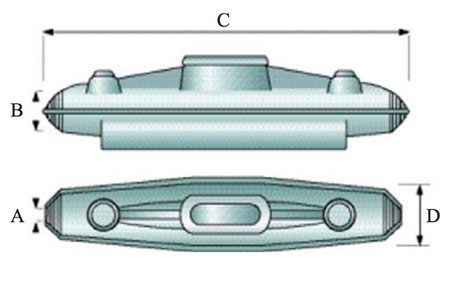

Joint Ref	Shell Dimensions				Nominal Area Of Conductor
	A	B	C	D	2 Core Max	3 Core Max	4 Core Max
Prysmian MPJEMJ1U	12mm	26mm	185mm	35mm	25mm²	25mm²	16mm²
Prysmian MPJEMJ2U	14mm	32mm	245mm	48mm	50mm²	50mm²	35mm²
Prysmian MPJEMJ3U	23mm	39mm	325mm	52mm	70mm²	70mm²	50mm²
Prysmian MPJEMJ4U	28mm	50mm	375mm	68mm	120mm²	120mm²	95mm²
Prysmian MPJEMJ5U	32mm	58mm	520mm	102mm	240mm²	240mm²	185mm²
Prysmian MPJEMJ6U	45mm	75mm	705mm	124mm	300mm²	300mm²	300mm²
Prysmian MPJEMJ7U	40mm	89mm	862mm	140mm	N/A	N/A	N/A
Prysmian MPJEMJ8U	57mm	95mm	900mm	150mm	N/A	N/A	N/A
