Prysmian MPJEM Low Voltage Industrial Cable Joint Kits for Armoured SWA Cables

By Chris Dodds on 20th September, 2012

Follow @ThorneanDerrick

Low Voltage LV Resin Cable Joints

Prysmian MPJEM Low Voltage Industrial Cable Joint Kits for Armoured SWA Cables



Prysmian MPJEM low voltage straight resin cable joints are suitable for LV jointing armoured XLPE SWA and polymeric cables with copper conductors from 1.5sqmm-400sqmm.

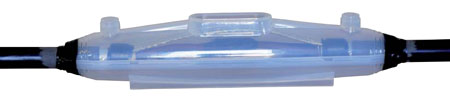

Prysmian MPJEM Low Voltage Industrial Cable Joint Kits

• Low Hazard Isocynate free JEM resin
• Transparent injection moulded polypropylene shells up to size 4 and vacuum formed clear HIPS for the larger sizes
• Slim-line design for use with compression connectors
• Low Voltage Straight Joints for 600/1000 Volt polymeric insulated copper conductors, SWA cables to BS5467, BS6346 and IEC 502
• Tested and approved to BS EN 50393 & ENA ER C81
• Includes constant force spring Armour Bonds



Prysmian MPJEM Low Voltage Industrial Cable Joints Data

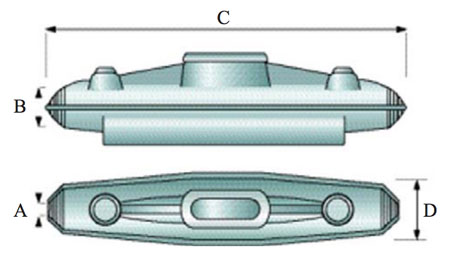

Joint Ref	Shell Dimensions				Nominal Area Of Conductor
	A	B	C	D	2 Core Max	3 Core Max	4 Core Max
Prysmian MPJEMJ1	12mm	26mm	185mm	35mm	6mm²	4mm²	4mm²
Prysmian MPJEMJ2	14mm	32mm	245mm	48mm	16mm²	10mm²	10mm²
Prysmian MPJEMJ3	23mm	39mm	325mm	52mm	35mm²	25mm²	25mm²
Prysmian MPJEMJ4	28mm	50mm	375mm	68mm	95mm²	70mm²	50mm²
Prysmian MPJEMJ5	32mm	58mm	520mm	102mm	185mm²	120mm²	95mm²
Prysmian MPJEMJ6	45mm	75mm	705mm	124mm	300mm²	185mm²	185mm²
Prysmian MPJEMJ7	40mm	89mm	862mm	140mm	N/A	300mm²	300mm²
Prysmian MPJEMJ8	57mm	95mm	900mm	150mm	400mm²	400mm²	400mm²
