Prysmian JUJCC Low Voltage Industrial Straight Cable Joint Kits for XLPE SWA Cables

By Chris Dodds on 20th September, 2012

Follow us on LinkedIn

Prysmian JUJCC Low Voltage Industrial Straight Cable Joint Kits for XLPE SWA Cables

Low Voltage LV Resin Cable Joints

Prysmian JUJCC Low Voltage Industrial Straight Cable Joint Kits for XLPE SWA Cables

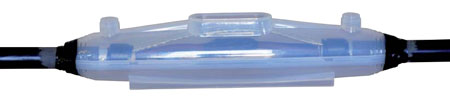

Prysmian JUJCC low voltage straight resin cable joints are suitable for LV jointing armoured XLPE and polymeric cables with copper conductors from 1.5sqmm-400sqmm.

Prysmian JUJCC Low Voltage Cable Joint Kits

Prysmian JUJCC Low Voltage Industrial Cable Joint Kit Features

  • Low Hazard Isocynate free JEM resin
  • Transparent injection moulded polypropylene shells up to size 4 and vacuum formed clear HIPS for the larger sizes
  • Slim-line design for use with compression connectors
  • Low Voltage Straight Joints for 600/1000 Volt polymeric insulated copper conductors, SWA cables to BS5467, BS6346 and IEC 502
  • Tested and approved to BS EN 50393 & ENA ER C81
  • Includes 4 compression connectors and constant force spring Armour Bonds

Prysmian JUJCC



Prysmian MPJEM Low Voltage Industrial Cable Joints Data

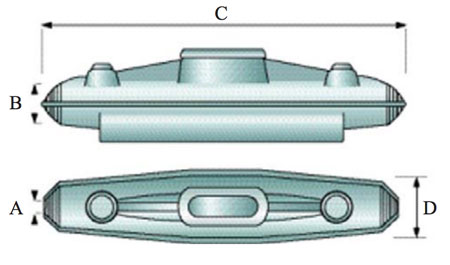

Joint Ref Shell Dimensions Nominal Area Of Conductor
A B C D 2 Core Max 3 Core Max 4 Core Max

Prysmian JUJ2CC

12mm 26mm 185mm 35mm 4mm² 4mm² 4mm²

Prysmian JUJ6CC

14mm 32mm 245mm 48mm 6mm²

6mm²

6mm²

Prysmian JUJ10CC

14mm 32mm 245mm 48mm 10mm²

10mm²

10mm²

Prysmian JUJ16CC

23mm 39mm 325mm 52mm 16mm²

16mm²

16mm²

Prysmian JUJ25CC

28mm 50mm 375mm 68mm 25mm² 25mm² 25mm²

Prysmian JUJ35CC

28mm

50mm 375mm 68mm 35mm²

35mm²

35mm²

Prysmian JUJ50CC

32mm 58mm 520mm 102mm

50mm²

50mm²

50mm²

Prysmian JUJ70CC

32mm

58mm 520mm 102mm

70mm²

70mm²

70mm²

Prysmian JUJ95CC

32mm

58mm 520mm 102mm 95mm²

95mm²

95mm²

Prysmian JUJ120CC

45mm 75mm 705mm 124mm 120mm²

120mm²

120mm²

Prysmian JUJ150CC

45mm

75mm 705mm 124mm 150mm²

150mm²

150mm²

Prysmian JUJ185CC

45mm

75mm 705mm 124mm 185mm²

185mm²

185mm²

Prysmian JUJ240CC

40mm 89mm 862mm 68mm 240mm² 240mm² 240mm²

Prysmian JUJ300CC

40mm 89mm 862mm 68mm 300mm² 300mm² 300mm²

Prysmian JUJ400CC

57mm 95mm 900mm 150mm 400mm² 400mm² 400mm²
