Prysmian Cable Cleats

Low Voltage & High Voltage Cable Cleats



T&D are Prysmian Main Distributors for their complete range of cable cleats. Prysmian offer products for more specialist applications such as Utilities, Railways, Oil, Gas and Petrochemical, Hazardous Areas, Wind and Solar Energy.

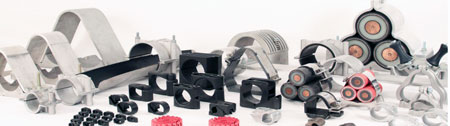

The Prysmian Group cable cleat range offers support and fixes for all types of cable on the market. Using Prysmian Bicon cable cleats offer the following advantages:

• Facilitate a neat and orderly installation allowing cables to be used at their optimum ratings whilst maximising the use of available space
• Maintain cables in position making reworking easier and potentially safer
• Provide restraint against short circuit forces





• Prysmian Telcleat

The telcleat is a single piece cleat which provides protection against all weather conditions, simple installation on a one piece, single fixing design.



• Prysmian Afumex Telcleat ( LUL Approved)

The Afumex Telcleat is a LUL approved single piece cleat which provides protection against all weather conditions, simple installation on a one piece, single fixing design.



• Prysmian Heavy Duty Hook Cleat

The Heavy Duty Hook Cleat is a two-piece, single fixing cleat designed to aid single person installation. Suitable for use with cables diameters 25 to 80mm.



• ​Prysmian Claw Cleat (Aluminium)

The Aluminium Claw Cleat is an LUL approved cable cleat which is the superior choice for industrial or outdoor areas.​



• Prysmian Hook Cleat (Aluminium)

The hook cleat is an LUL approved two piece aluminium industrial cleat designed to aid single person installation.



• Prysmian Galvanised Iron Claw Cleat

The Cast Iron Claw Cleat is the premium choice for fire performance cables. Suitable for all cable routes, the Claw Cleat can tolerate a 2 hour excursion up to 1000˚C.



• Prysmian 2 Bolt Cleat - (High Density Nylon 66)

The plastic two bolt cleat is the best choice for larger cable diameters. Both sunlight and weather resistant the two bolt cleat is resilient to corrosive environments such as oils and most chemicals.



• Prysmian Afumex 2 Bolt Cleat ( LUL Approved)

​The Plastic Two Bolt Cleat is an LUL approved two piece industrial cable cleat; it is the best choice for larger cable diameters. Both sunlight and weather resistant the two bolt cleat is resilient to corrosive environments such as oils and most chemicals.



• Prysmian Aluminium 2 Bolt Cable Cleat

The Aluminium Two Bolt Cleat is double stacking cable cleat which can be applied to all types of cable routes.



• Prysmian Trefoil Orion Cleats

The Orion Cleat provides the strongest support for cables laid in trefoil formation. Suitable for LV,MV and HV cable designs the Orion Cleat features deep cast bases to aid easy cable installation.



• Prysmian Trefoil Libra Cleat

​The Libra Cleat is an aluminium cleat suitable for single core cables laid in trefoil.



• Prysmian Multicleat / Multistrap System

The Multicleat is an LUL approved single, trefoil or bundled cable cleat. The Multicleat offers the highest fault current capacities and provides easy installation.



• Prysmian FP Firefix Single Clip - for FP200 Gold Cables

The Single Clip Firefix is an LUL Approved clip for rapid installation of fire alarm and emergency lighting cables.



• Prysmian FP Firefix Double Clip - for FP200 Gold and FP Plus Cables

The Double Clip Firefix is an LUL Approved clip for rapid installation of fire alarm and emergency lighting cables.



• Prysmian Cast Iron Two Bolt Cable Cleat

The Cast Iron Two Bolt Cleat is the premium choice for fire performance cables. Suitable for all cable routes, the Claw Cleat can tolerate a 2 hour excursion up to 1000˚C.

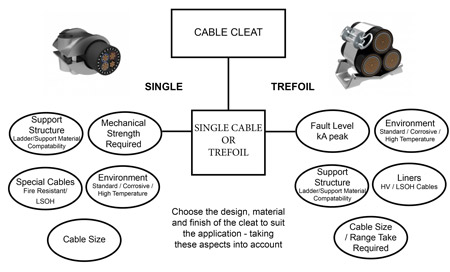

Pictured: Prysmian Cable Cleat Selection Table

Contact T&D Sales for more information on the Prysmian Cable Cleat Range.
