Prysmian Bicon 374 Series Cable Cleats



Prysmian Afumex two bolt cable cleats are Low Smoke and Zero Halogen designed to cleat and clamp Afumex, LSOH and LSF (Low Smoke Fume) cables - Afumex cable cleats are suitable for cables 50-94mm in diameter. Prysmian Afumex cable cleats are London Underground (LUL) Approved.

The plastic two bolt cable cleats are part of the Prysmian BICON range of cable cleats for single way cleating for Afumex Zero Halogen LSOH and Draka Saffire Low Smoke OHLS cables up to 94mm outer sheath diameter depending on short circuit protection levels.

• Suitable for use with LV-HV cables from 50 to 94mm in diameter
• BICON cable cleats available in 7 sizes
• Low Smoke and Zero Halogen
• Suitable for use with Afumex, LSOH and LSF cables
• LUL Approved
• Sunlight (UV) and weather resistant
• Two-piece, two fi xing design
• Operating temperature -20°C to +90°C
• Can be double stacked on common fixings

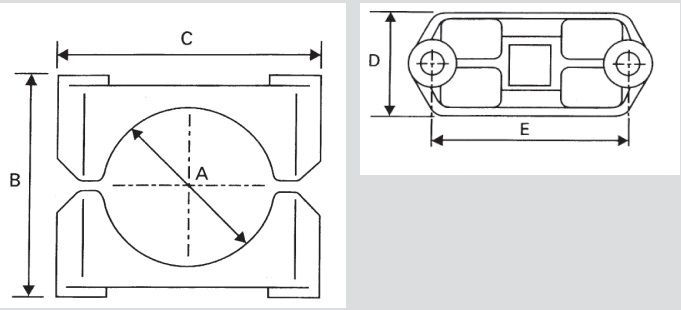

Pictured: Prysmian Two Hole Plastic LSF Cable Cleat Diagram



Prysmian - Two Hole Plastic LSF Cable Cleat Technical Data

Prysmian Cable and Cleat Selection			Prysmian Cable Cleat Details
Design Number	Cable Diameter A (mm)		Cleat Dimensions (mm)				SWL FOS2 (kgf)	Approx Weight per Cleat (2 halves) (g)
	Min	Max	B	C	D	E
374LSF01	50	58	89	102	45	80	290	174
374LSF02	56	64	93	102	45	80	340	158
374LSF03	62	70	98	114	45	92	360	174
374LSF04	68	76	104	114	50	92	400	210
374LSF05	74	82	110	126	50	104	375	254
374LSF06	80	88	118	126	50	104	445	264
374LSF07	86	94	121	136	60	114	475	326

SWL = Safe Working Load FOS 2 = Values include a Factor Of Safety of 2

Installing Afumex 2 Bolt Cable Cleat

The Afumex 2 bolt cable cleat should be mounted on suitable M10 fixings. There is no need for any channel adaptor when mounting on to a ‘C’ section channel.
