Prysmian Bicon Cable Cleats - Telcleat 385 Series

By Chris Dodds on 18th September, 2012

Follow @ThorneanDerrick

Prysmian Cable Cleats

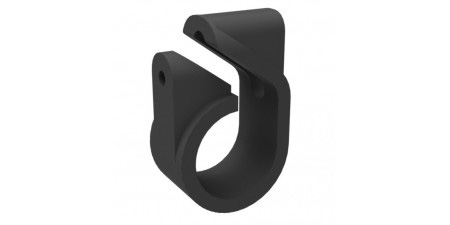

Prysmian Telcleats Cable Cleats - 385 Series



Prysmian Telcleat cable cleats are single piece cleats which provide protection against all weather conditions. The Telcleat cleats are simple to install with a single fixing design.

Prysmian Bicon Telcleats Benefits

• Suitable for use with cable diameters 10 to 51mm
• Manufactured from Low Density Polythene
• Overlapping self-adjusting ranges
• Sunlight (UV) and weather resistant
• One piece, single fixing design
• Can be double stacked on a single fixing
• Operating temperature -40°C to +60°C
• Tested in accordance with BS EN 50368

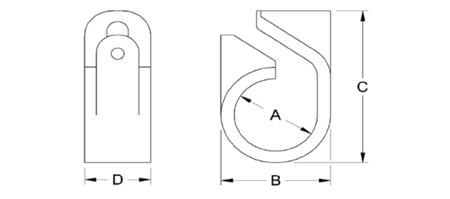

Prysmian Bicon Telcleat Cable Cleat Specifications

Cable & Cleat Selection		Cleat Details
Product No.	Cable Diameter A	Dimensions			Weight	Screw Bolt For Cable Tray
		B (min-max)	C (max)	D
Prysmian Bicon 385AA01	10.5mm - 14.5mm	15mm - 18mm	32mm	12mm	2.3g	M4 x 30
Prysmian Bicon 385AA02	12.2mm - 16.7mm	17mm - 22mm	36mm	14mm	3.4g	M4 x 35
Prysmian Bicon 385AA03	14.6mm - 19.8mm	21mm - 26mm	43mm	16mm	5.5g	M4 x 40
Prysmian Bicon 385AA04	17.7mm - 24mm	25mm - 31mm	51mm	18mm	8.6g	M4 x 45
Prysmian Bicon 385AA05	21.7mm - 28.5mm	30mm - 37mm	57mm	20mm	12.4g	M4 x 50
Prysmian Bicon 385AA06	26.2mm - 34.2mm	35mm - 43mm	65mm	22mm	16.4g	M4 x 60
Prysmian Bicon 385AA07	31.9mm - 41.6mm	42mm - 52mm	78mm	25mm	24g	M4 x 70
Prysmian Bicon 385AA08	39.3mm - 51.1mm	50mm - 62mm	91mm	26mm	35g	M4 x 80



Cable Cleat Fixing - the cable cleat is opened up and placed around the cable so that the end of the Prysmian Telcleat containing the slot will be in contact with the mounting surface. When mounting Prysmian Telcleats on "Unistrut" or "Leprack" type channel section an adaptor plate should be used.
