Installing 132kV Prysmian Cable Joints Using Prysmian Multi Ram Crimping Tool

By Chris Dodds on 26th October, 2015

Follow @ThorneanDerrick

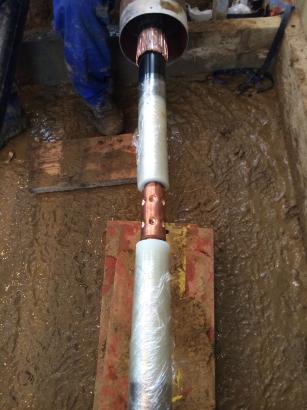

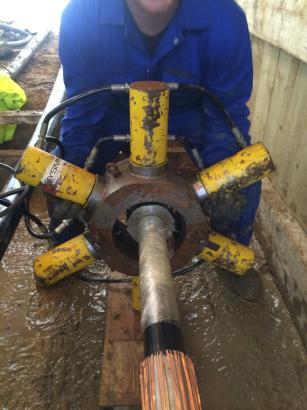

Pictured : Installing 132kV Prysmian Cable Joints Using Prysmian (Pirelli) Multi Ram Crimping Tool - the EHV cable jointer is shown wrestling with a 132kV 1000sqmm copper cable prior to jointing using Prysmian straight joints.

132kV mechanical shearbolt connectors are currently undergoing type testing which will eventually negate the need for traditional style crimping by the jointer.

T&D are distributors for Prysmian Cable Components which includes their range of Bicon cable joints, cable cleats, cable glands and jointer tooling for LV, MV and HV cables.

Installer : Chris Barker (EHV Cable Jointer).

For almost 100 years Prysmian cables and systems (formally known as Pirelli Cables) have been designing, manufacturing, installing and maintaining High Voltage (HV) and Extra High Voltage Cable (EHV) Systems throughout the world.

Chris Barker is also experienced and certified to carry out the installation of the following HV and EHV cable joints and terminations :

• Pirelli/Prysmian
• Prysmian Click-Fit
• Ericsson
• ABB
• Silec Cable
• Nexans
• Pfisterer/Ixosil
• Raychem
• Tyco TE Connectivity
• LS Cable
• 3M

Silec 220kV Straight Joints. Installed by Chris Barker (CB Jointing Ltd)
