11kV Cold Applied Tyco Transition Straight Joint

By Chris Dodds on 14th January, 2016

Follow @ThorneanDerrick

Image: John Penny Cable Jointer / Director at CableTec Services

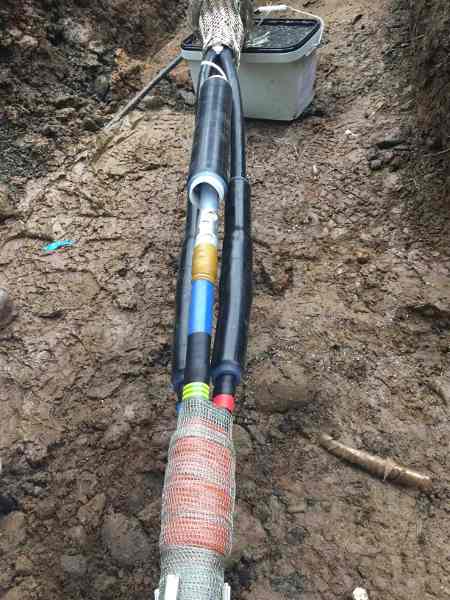

Pictured: 11kV Cold Applied Tyco Transition Straight Joint - despite the typical muddy cable trench conditions note the careful attention to cable cleanliness achieved by the jointer. The Tyco cold-applied medium voltage cable joint body with built-in stress control is parked and ready for cold-shrinking down onto the third single core cable.

Heat-shrinking in close quarter and limited access cable jointing holes can hamper the jointer - cold shrink naturally requires no heat shrink torch or gas bottle and therefore permits more working space.
