Pfisterer Connex Inner Cone Plugs Size 3, 33kV, 1250A 50-630sqmm

Pfisterer MV-Connex Inner Cone Plugs Cable Terminations

High Voltage Cable Terminations

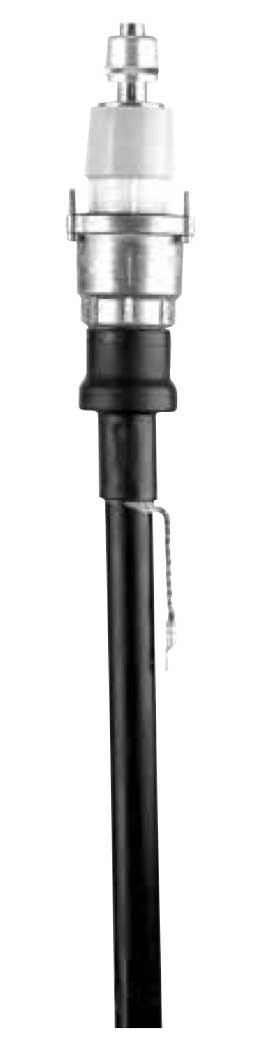

Pfisterer MV-Connex Separable Connectors Size 3

Rated up to 11-33kV, 1250 Amps



Pfisterer Connex Inner Cone Plugs & Cable Terminations for High Voltage Gas Insulated Switchgear GIS (SF6) 33kV

Pfisterer size 3 inner cone plug separable connectors are suitable for terminating high voltage single core cables with copper wire screens. Pfisterer HV cable plugs are suitable for indoor and outdoor cable terminations with or without voltage taps - offshore and 3 core version Pfisterer cable plugs are available.

Suitable for 50sqmm, 70sqmm, 95sqmm, 120sqmm, 150sqmm, 185sqmm, 240sqmm, 300sqmm, 400sqmm, 500sqmm and 630sqmm cable cross-section conductors, 33kV.

Pfisterer Size 3 MV-Connex Separable Connector Features

• For DIN VDE cables
• For RM-conductor (stranded circular) of aluminium or copper
• For single core cable with copper wire shield without armouring
• With sealing system (bell flange seal and shrink tubing)
• For indoor and outdoor applications
• Not soil-resistant and not offshore-proof
• Offshore version on request
• Packaging unit: set with three separable connectors
• 3-core version on request
• Rotatable Flange



Pfisterer Size 3 MV-Connex Separable Connector Specifications

Product No.  (w/ voltage tap)	Product No. (w/o voltage tap)	Max Oper-ating Voltage	For Cable Cross Section	For Dia. Over Con-ductor	For Insulation Thick-ness	For Diameter Over XPLE Insulation Ø
Pfisterer 850310800	Pfisterer 870310120	11/12 kV	120mm²	12.5mm - 14.7mm	3.4mm	19mm - 23mm
Pfisterer 850310150	Pfisterer 870310150	11/12 kV	150mm²	13.5mm - 15.7mm	3.4mm	19mm - 23mm
Pfisterer 850310185	Pfisterer 870310185	11/12 kV	185mm²	15mm - 17.2mm	3.4mm	22.5mm - 26.5mm
Pfisterer 850310240	Pfisterer 870310240	11/12 kV	240mm²	17.5mm - 19.7mm	3.4mm	24.5mm - 28.5mm
Pfisterer 850310300	Pfisterer 870310300​	11/12 kV	300mm²	19.5mm - 21.7mm	3.4mm	26mm - 30mm
Pfisterer 850310400	Pfisterer 870310400	11/12 kV	400mm²	22.6mm - 24.8mm	3.4mm	30mm - 34mm
Pfisterer 850310500	Pfisterer 870310500	11/12 kV	500mm²	25.4mm - 27.6mm	3.4mm	32mm - 36mm
Pfisterer 850310630	Pfisterer 870310630​	11/12 kV	630mm²	28.9mm - 31.1mm	3.4mm	36mm - 39.5mm
Pfisterer 850320050	Pfisterer 870320050	22/24 kV	50mm²	7.2mm - 9.4mm	5.5mm	19mm - 23mm
Pfisterer 850320070	Pfisterer 870320070	22/24 kV	70mm²	9mm - 11.2mm	5.5mm	19mm - 23mm
Pfisterer 850320095	Pfisterer 870320095	22/24 kV	95mm²	10.5mm - 12.7mm	5.5mm	22.5mm - 26.5mm
Pfisterer 850320120	Pfisterer 870320120	22/24 kV	120mm²	12.5mm - 14.7mm	5.5mm	22.5mm - 26.5mm
Pfisterer 850320150	Pfisterer 870320150	22/24 kV	150mm²	13.5mm - 15.7mm	5.5mm	24.5mm - 28.5mm
Pfisterer 850320185	Pfisterer 870320185	22/24 kV	185mm²	15mm - 17.2mm	5.5mm	26mm - 30mm
Pfisterer 850320240	Pfisterer 870320240	22/24 kV	240mm²	17.5mm - 19.7mm	5.5mm	28mm - 32mm
Pfisterer 850320300	Pfisterer 870320300​	22/24 kV	300mm²	19.5mm - 21.7mm	5.5mm	30mm - 34mm
Pfisterer 850320400	Pfisterer 870320400	22/24 kV	400mm²	22.6mm - 24.8mm	5.5mm	34mm - 38mm
Pfisterer 850320500	Pfisterer 870320500​	22/24 kV	500mm²	25.4mm - 27.6mm	5.5mm	36mm - 39.5mm
Pfisterer 850320630	Pfisterer 870320630​	22/24 kV	630mm²	28.9mm - 31.1mm	5.5mm	40mm - 43mm
Pfisterer 850330050	Pfisterer 870330050	33/36 kV	50mm²	7.2mm - 9.4mm	8mm	22.5mm - 26.5mm
Pfisterer 850330070	Pfisterer 870330070	33/36 kV	70mm²	9mm - 11.2mm	8mm​	24.5mm - 28.5mm
Pfisterer 850330095	Pfisterer 870330095	33/36 kV	95mm²	10.5mm - 12.7mm	8mm​	26mm - 30mm
Pfisterer 850330120	Pfisterer 870330120	33/36 kV	120mm²	11.5mm - 13.7mm	8mm​	28mm - 32mm
Pfisterer 850330150	Pfisterer 870330150	33/36 kV	150mm²	13.5mm - 15.7mm	8mm​	30mm - 34mm
Pfisterer 850330185	Pfisterer 870330185	33/36 kV	185mm²	15mm - 17.2mm	8mm​	30mm - 34mm
Pfisterer 850330240	Pfisterer 870330240	33/36 kV	240mm²	17.5mm - 19.7mm	8mm​	34mm - 38mm
Pfisterer 850330300	Pfisterer 870330300	33/36 kV	300mm²	19.5mm - 21.7mm	8mm​	36mm - 39.5mm
Pfisterer 850330400	Pfisterer 870330400	33/36 kV	400mm²	22.6mm - 24.8mm	8mm​	38mm - 41mm
Pfisterer 850330500	Pfisterer 870330500​	33/36 kV	500mm²	25.4mm - 27.6mm	8mm​	42mm - 44.5mm
-	Pfisterer 870330630​	33/36 kV	630mm²	28.9mm - 31.1mm	8mm​	44.5mm - 47mm
-	Pfisterer 870330631​	33/36 kV	630mm²​	28.9mm - 31.1mm	8mm​	46.5mm - 49mm

Pfisterer CONNEX components enable onshore and offshore LV-HV cable jointing, terminating and connecting of GIS Switchgear, Transformers, RMU (Ring Main Units), Capacitors, Transducers, Motors & Cable Sealing End Boxes – also surge arresters, busbar couplings, pluggable substation connectors and Sicon mechanical shearbolt cable lugs and splices for 11kV/33kV switchgear connection of MV-HV power cables.

Size 3 Connectors – Pfisterer MV CONNEX Medium Voltage Cable Plugs
