Patton & Cooke 600 Amp PILC Cable Transition Module

By Chris Dodds on 18th September, 2015

Follow us on LinkedIn

Patton & Cooke 600 Amp PILC Cable Transition Module

Patton & Cooke Co.’s CTM’s are designed for splicing PILC (paper insulated lead covered) cable into solid dielectric cable. P&C modules allow easy and reliable construction of single phase taps or cable splices from PILC distribution cable feeders using Separable Insulated Connectors (i.e. Rubber Elbows).

CTM’s are rated for 15kV or 35kV applications and are available in 200, 600 or 900 Amp configurations.

Image Courtesy :

  • John McGaughan
  • Cable Systems Operations Specialist at TECO

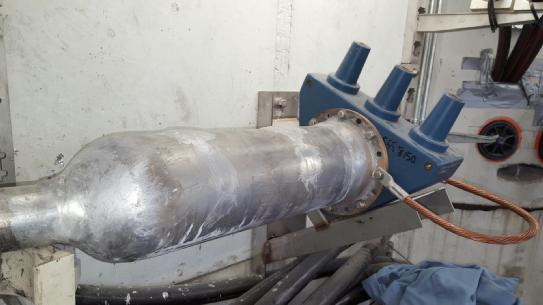

Pictured : Patton & Cooke Transition Module - built by apprentice at TECO Training Centre.

HV Cable Jointing

Since 1961, Patton & Cooke has been designing and manufacturing medium and high voltage electrical connectors and equipment for minesHigh Voltage and utilities around the world.

From 600 to 25,000 volts, 145 to 500 Amps, Patton & Cooke designs and manufactures trailing cable couplers, junction boxes, and splitter boxes, as well as cable and coupler handling devices for the safe distribution of power to both mobile and fixed mining production equipment.



  • Further reading :

Spiking & Spearing Cable Splices

The Perfect 13.2kV Nub

Transformer Hi-Side PILC Cable Termination Chamber With Stress Cones
