Offshore Cable Cleating � 33kV Single Core Cable Containment

By Chris Dodds on 19th October, 2015

Follow @ThorneanDerrick

Image: Stewart Cornelius (LV-HV Cable Jointer).

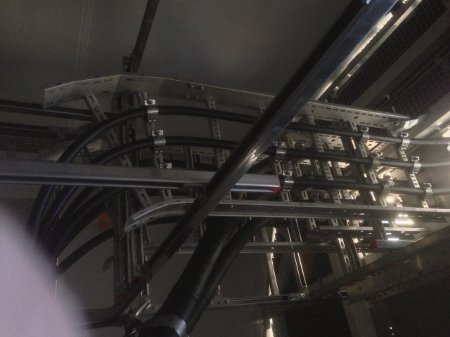

Pictured: Offshore Cable Cleating – 33kV Single Core Cable Containment. 185sqmm aluminium cables and 630sqmm copper cables out of the offshore hang-off using 316 stainless steel cable cleats.
