Triplex 11kV Cable Joint - BS7870 300sqmm Straight Joint (Resin Filled)

By Chris Dodds on 19th October, 2015

Follow @ThorneanDerrick

Image: Stewart Cornelius (LV-HV Cable Jointer).

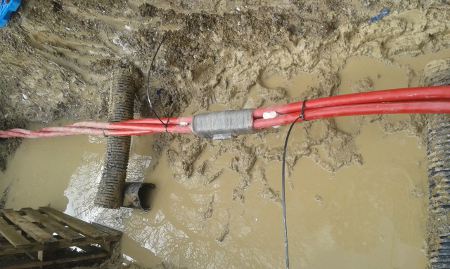

Pictured: Triplex 11kV Cable Joint  - BS7870 300sqmm Straight Joint (Resin Filled).

The Tyco Raychem cable joint is shown in typical UK underground cable trench conditions providing a DNO connection for a solar farm.



Stewart's HV Jointer Training and Certifications include :

• UKPN Live LV, 11kV and 33kV Trade Tested LPN, SPN & EPN
• UKPN Entry To Substation Up To 132kV
• UKPN Receive PTW & LOA Up To & Including 33kV
• ID LV Underground Cables
• Nexans T Boots, Separable Connectors & Cable Joints Up To 33kV
• Pfisterer Inner Cone Plugs Size 1-3XL Up To 52kV
• 3M Cold Shrink Terms and Cable Joints Up To 72kV
