33kV Nexans Offshore Cable Terminations Into Ormazabal Panel

By Chris Dodds on 19th October, 2015

Follow @ThorneanDerrick

Image: Stewart Cornelius (LV-HV Cable Jointer).

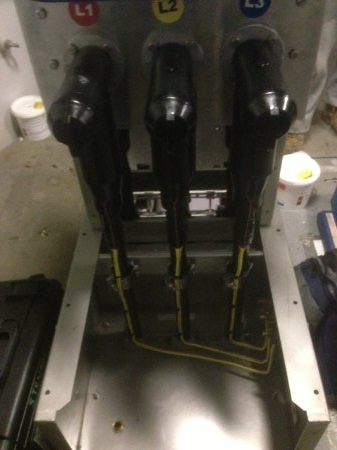

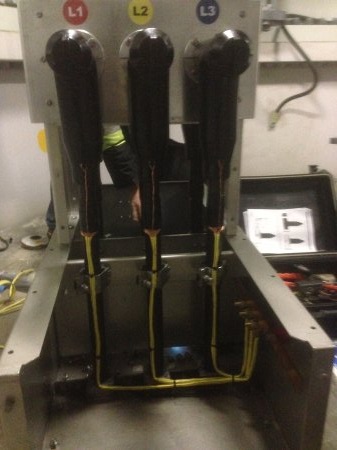

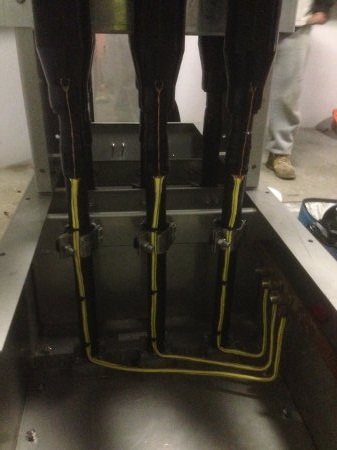

Pictured: 33kV Nexans Offshore Cable Terminations Into Ormazabal Switchgear Panel.

33kV Nexans Connectors are shown terminating 3 x single core 300sqmm high voltage power cables. There are also pre-made VT leads in this Ormazabal panel located on a UK offshore wind farm.

T&D are Main Distributors for the complete range of Nexans Euromold Connectors, Joints and Terminations for medium voltage cables.

1.

2.

3.

4.
