Off-Grid 300kWh System With DC Battery Bank & Coupled PV Array

By Chris Dodds on 9th February, 2016

Follow us on LinkedIn

Off-Grid 300kWh System With DC Battery Bank & Coupled PV Array

Image: Peter Winters - Director, Winters Electrical Group.

Winters Electrical Group are an Australian electrical contracting business with 30 years experience in the design and installation of Solar and Renewable Energy Systems, Battery and Generator Backup Systems, Telecommunications and Data Cabling Solutions and General Electrical Contracting.

Winters Electrical specialise in off-grid and commercial solar hybrid installations. Products installed include Selectronic SP Pro Inverter/Chargers, AERL MPPT DC Chargers, ABB Inverters, Hoppecke Batteries and Suntech PV Modules.

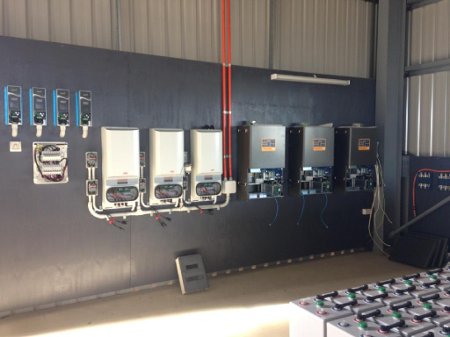

Pictured: Off-Grid 300kWh System With DC Battery Bank & Coupled PV Array.

Location : Mount Mulligan, Queensland, Australia.

Capacity : 45kW three-phase (continuous AC rating), 69kW (30 min rating), 99kW (30 sec rating) with 120V parallel DC battery bank (approx 300kWh usable).

18kW AC coupled & 20kW DC coupled PV array.

Off-Grid 300kWh System With DC Battery Bank & Coupled PV Array
