T&D Visit Nexans Offices To Receive Training For High Voltage Connectors

By Chris Dodds on 6th July, 2012

Follow @ThorneanDerrick

HV Cable Jointing & Terminating

Nexans Back Thorne & Derrick For High Voltage Success

Nexans Euromold Screened Separable Connectors



Mick Dawn (Nexans Technical Manager) pictured with T&D Sales Team members Gary Amos and Jim Moore following product training today at Nexans offices. Nexans are the leading European specialised manufacturer of prefabricated heat shrink and cold shrink cable accessories (joints, terminations, elbows and plug-in connectors) for high voltage energy distribution. (Trade names Nexans and Euromold)

Pictured: T&D Sales Team Having Product Training at Nexans Offices

Nexans Euromold high voltage screened separable connectors are for cable terminating 11kV-33kV polymeric cables onto switchgear and transformer bushings. Nexans Euromold cable connectors meet the requirements of ANSI/IEEE 386 & 404 and CENELEC EN50180 & EN50181 for high voltage "dead-break" cable connection.

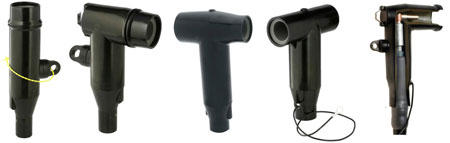

Pictured: Nexans Euromold Screened Separable Connectors





Nexans Euromold High Voltage Screened Separable Connector Range:

Nexans Euromold 200 Series Interface A

Nexans Euromold 400 Series Interface B

Nexans Euromold 400 Series Interface C

Nexans Euromold 400 Series Interface C (Symmetrical)

Nexans Euromold 900 Series Interface F



Advantages of Nexans Euromold HV Cable Connector Systems

No minimum distances required - suitable for compact HV substations Safe to touch accidentally when energised Maintenance free HV cable connectors and terminations Quick and easy to install connectors by trained cable jointers Fully watertight cable terminations - IP67 ingress protection Complete cable connector ranges for 11kV to 33kV cable connections Connectors suitable for outdoor cable termination without cable box Tee connectors can be piggy-backed to allow multiple cable connections onto bushings



YouTube Video Playlist: Nexans Euromold HV Cable Connectors, Cable Joints & Cable Terminations



T&D provides a complete range of cable jointing and terminating accessories for underground cables : pre-moulded EPDM rubber connectors and silicone cable terminations for cables and epoxy bushings for transformers and switchgear, as well as a large range of cold and heat shrinkable terminations and joints from 11kV to 33kV to 42kV.
