Nexans Euromold Interface F separable connectors for terminating MV-HV cables (including XLPE EPR 11kV 17.5kV, 24kV, 33kV, 42kV) - a complete range of elbow connectors for termination of medium/high voltage cables into switchgear, transformers, motors and substations up to 42k

Nexans Euromold 900 Series Screened Cable Connectors and Bushings connect and terminate medium and high voltage (MV-HV) power cables to Interface F bushings on switchgear and transformers up to 42kV.

Euromold Interface F connectors are suitable for termination of polymeric (XLPE EPR) insulated cables with copper wire or tape screen, wire armoured (SWA/AWA), wire braided or unarmoured cables into MV-HV Electrical Equipment with Interface F bushings.

  • 6/10kV (12kV)
  • 6.35/11kV (12kV)
  • 8.7/15kV (17.5kV)
  • 12/20kV (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)
  • 20.8/36 (42kV)
  • Up to 42kV 2500 Amps

Nexans 944TB Tee Connectors provide high voltage cable terminations using separable tee shape connectors :

Euromold separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (sqmm)
min max
944TB/G 11kV 12kV 2500 Amps 95 800
K944TB/G 11kV 24kV 2500 Amps 95 800
M944TB/G 11kV 24kV 36kV 2500 Amps 95 800
P944TB/G 11kV 24kV 36kV 42kV 1250 Amps 95 800



Nexans 944TB tee connectors are compatible with Nexans 900AR-1, 900-AR-2, 900AR-3 and 900AR-4 equipment bushings.



Pictured : Nexans Euromold Cable Connectors (900 Series Interface F)

Euromold 944TB Tee Connector 11kV 33kV 42kV - Design

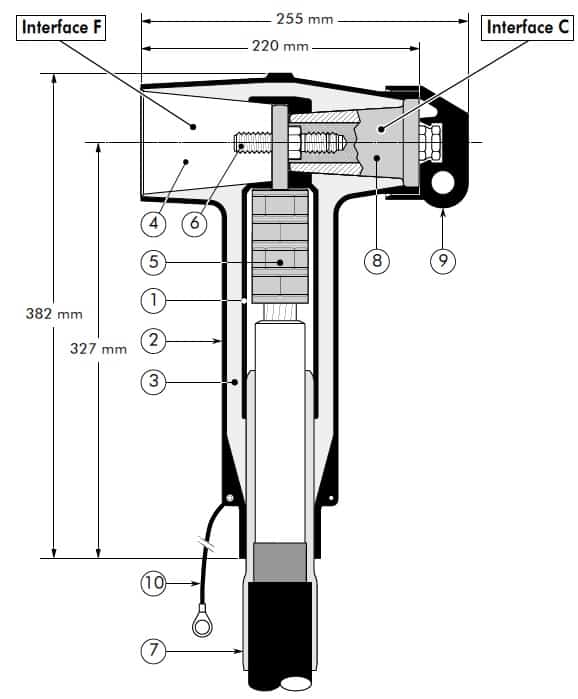

Separable tee connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type F interface as described by CENELEC EN 50180 and 50181.
  5. Conductor connector.
  6. Clamping screw.
  7. Cable reducer.
  8. Basic insulating plug (with VD point), type C interface as described by CENELEC EN 50180 and 50181.
  9. Conductive rubber cap.
  10. Earthing lead.

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations. The screen break design enables cable outer sheath testing without removing or dismantling the connector.

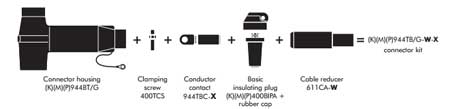

Nexans Euromold Cable Connectors (900 Series Interface F) - Kit List

Nexans Euromold



Nexans Euromold provide a complete range of EPDM rubber, cold-shrink and heat-shrink cable connectors, joints and terminations for medium and high voltage power cables, 11kV-33kV.
