Nexans Euromold 200 Series Screened Cable Connectors and Bushings connect and terminate medium and high voltage (MV-HV) power cables to Interface A bushings on switchgear and transformers up to 24kV.

Nexans Euromold Interface A separable connectors for terminating MV-HV cables (including XLPE EPR 11kV 17.5kV, 24kV) - a complete range of elbow connectors for termination of medium/high voltage cables into switchgear, transformers, motors and substations up to 24kV.

Euromold Interface A connectors are suitable for termination of polymeric (XLPE EPR) insulated cables with copper wire or tape screen, wire armoured (SWA/AWA), wire braided or unarmoured cables into MV-HV Electrical Equipment with Interface A bushings.

  • 6/10kV (12kV)
  • 6.35/11kV (12kV)
  • 8.7/15kV (17.5kV)
  • 12/20kV (24kV)
  • 12.7/22 (24kV)
  • Up to 24kV 250 Amps

Nexans 152SR Straight Connectors provide high voltage cable terminations using screened separable connectors :

Euromold Separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (sqmm)
min max
152SR/G 11kV 12kV 250 Amps 16 95
152SR 11kV 12kV 250 Amps 70 95
K152SR/G 11kV 24kV 250 Amps 16 70
K152SR 11kV 24kV 250 Amps 25 95



Nexans Euromold Cable Connectors (200 Series Interface A) - 152SR

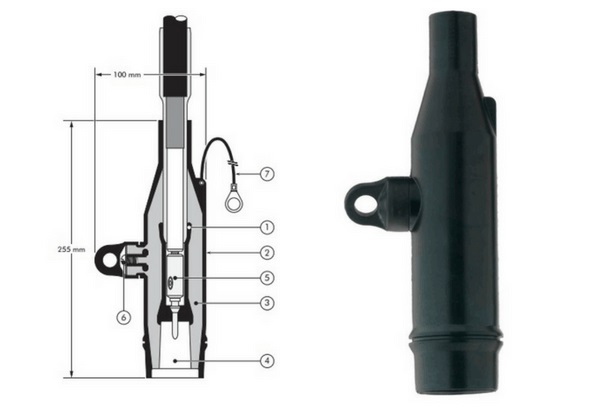

Euromold 152SR Straight 11kV 24kV - Design

Separable straight connector comprising:

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between the insert and the jacket
  4. Type A - 250 A Interface as described by CENELEC EN 50180 and 50181
  5. Conductor connector
  6. Voltage test point
  7. Earthing lead (-/G version only)

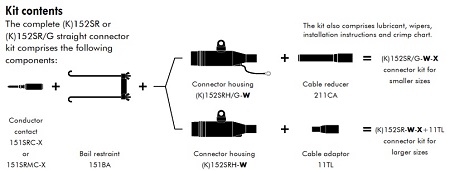

Nexans Euromold Cable Connectors (200 Series Interface A) - 152SR Kit List

Nexans Euromold 152SR Kit List



Nexans 158LR Elbow Connectors provide high voltage cable terminations using screened separable connectors :

Euromold Separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (sqmm)
min max
158LR/G 11kV 12kV 250 Amps 16 95
158LR 11kV 12kV 250 Amps 70 95
K158LR/G 11kV 24kV 250 Amps 16 70
K158LR 11kV 24kV 250 Amps 25 95



Nexans Euromold Cable Connectors (200 Series Interface A) - 158LR

Euromold 158LR Elbow 11kV 24kV - Design

Separable elbow connector comprising:

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between the insert and the jacket
  4. Type A - 250 A Interface as described by CENELEC EN 50180 and 50181
  5. Conductor connector
  6. Voltage test point
  7. Earthing lead (-/G version only)

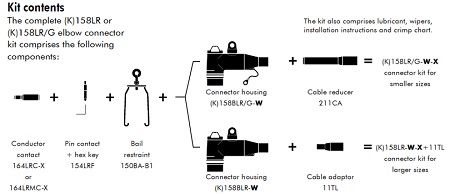

Nexans Euromold Cable Connectors (200 Series Interface A) - 158LR Kit List

Nexans Euromold 158LR Kit

Nexans Euromold provide a complete range of EPDM rubber, cold-shrink and heat-shrink cable connectors, joints and terminations for medium and high voltage power cables, 11kV-33kV.
