MCT Brattberg RGB Cable Transit Frames For Solihull Hospital Switchrooms

By Chris Dodds on 22nd February, 2013

Follow @ThorneanDerrick

MCT Brattberg - Cable Transit Frames

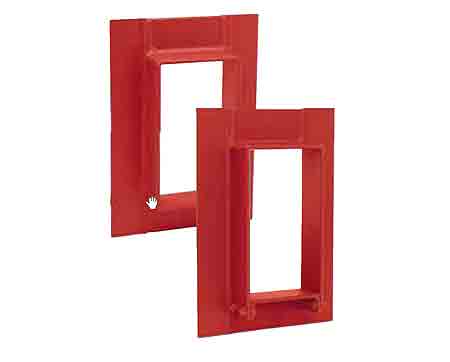

MCT Brattberg RGB Cable Transit Frames

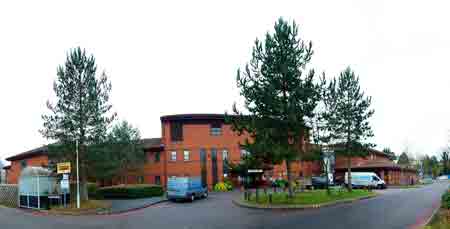

T&D working with SSE Contracting are supplying 9 MCT Brattberg Cable Transit Frames to provide protection to cables entering and leaving switchrooms at Solihull Hospital.

The special customised Cable Transit Frames are being manufactured by MCT Brattberg from galvanised mild steel. MCT Brattberg RGB Cable Transit Frames are to be supplied with custom made busbar blocks to be provide a fire rated cable transit seal.

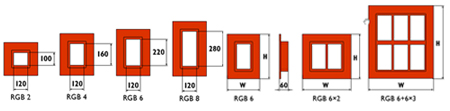

MCT Brattberg RGB is a frame for casting or bolting to a wall or floor. The RGB cable transit frame has a standard internal width of 120mm and is 60mm deep. There are four standard sizes available - 2, 4, 6 & 8. These RGB frames are manufactured with 60mm x 60mm x 6mm.

MCT Brattberg RGB Cable Transit Frame Specifications

Frame Size

H

Size

Weight

W (width) / Multiple Frames

x1

x2

x3

x4

x5

x6

x1

x2

x3

x4

x5

x6

RGB-2

221 mm

240.5 mm

371 mm

501.5 mm

632 mm

762.5 mm

893 mm

3.2 kg

5.1 kg

7.1 kg

9.0 kg

11.0 kg

12.9 kg

RGB-4

279.5 mm

3.9 kg

6.1 kg

8.3 kg

10.5 kg

12.7 kg

14.9 kg

RGB-6

338 mm

4.5 kg

6.9 kg

9.4 kg

11.8 kg

14.2 kg

16.7 kg

RGB-8

396.5 mm

5.2 kg

7.9 kg

10.7 kg

13.5 kg

16.2 kg

19.0 kg

RGB-2+2

332 mm

240.5 mm

371 mm

501.5 mm

632 mm

762.5 mm

893 mm

5.1 kg

8.1 kg

11.2 kg

14.2 kg

17.2 kg

20.3 kg

RGB-2+4

390.5 mm

5.8 kg

9.2 kg

12.7 kg

16.1 kg

19.6 kg

23.0 kg

RGB-2+6

449 mm

6.3 kg

10.1 kg

13.9 kg

17.8 kg

21.6 kg

25.4 kg

RGB-2+8

507.5 mm

7.1 kg

11.3 kg

15.5 kg

19.7 kg

23.9 kg

28.1 kg

RGB-4+4

449 mm

240.5 mm

371 mm

501.5 mm

632 mm

762.5 mm

893 mm

6.3 kg

10.1 kg

13.9 kg

17.8 kg

21.6 kg

25.6 kg

RGB-4+6

507.5 mm

7.1 kg

11.3 kg

15.5 kg

19.7 kg

23.9 kg

28.1 kg

RGB-4+8

566 mm

7.6 kg

12.1 kg

16.6 kg

21.1 kg

25.6 kg

30.1 kg

RGB-6+6

566 mm

-

-

-

-

-

-

7.6 kg

12.1 kg

16.6 kg

21.1 kg

25.6 kg

30.1 kg

RGB-6+8

624.5 mm

7.6 kg

13.3 kg

18.3 kg

23.3 kg

28.3 kg

33.3 kg

RGB-8+8

683 mm

9.1 kg

14.6 kg

20.1 kg

25.5 kg

31.0 kg

36.4 kg

n = number of frames in width.



The MCT Brattberg range of cable transit frames, for both welding and bolting, meet the stringent demands of offshore and maritime applications. Frame units are cut, welded, ground and stamped with our logo, date of manufacture and material specification for identification and traceability. The complete frames are inspected and then dipped in a corrosion-resistant paint before being inspected for quality.
