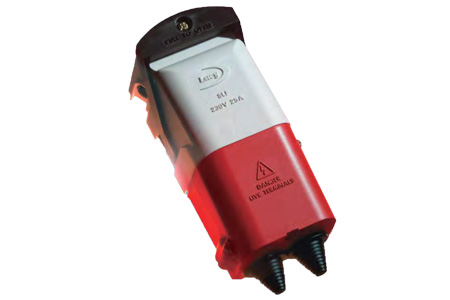

Lucy Zodion Titan Street Lighting MC040SLF Single Phase Cut Outs

By Chris Dodds on 26th July, 2012

Follow @ThorneanDerrick







With its low body split line tomaximise cabling access, the Lucy Lighting Titan SLF is the simplest exponent of the single pole cut outs.

Tough, engineering grade thermoplastics and fully electroplated brass componentry ensure that the Lucy SLF street lighting cut out will have a long, reliable service life.

The Lucy Zodion Titan MC040SLF cam operated fuse handle ensures that electrical disconnection takes place prior to the fuse carrier being extracted by the street lighting contractor.

Lucy Zodion MC040SLF Single Phase Cut Out Specifications

• Cut out designed and tested in accordance with BS 7654:1997
• 25A maximum fuse rating
• Accepts fuse links to BS 88 Part 1, AC 16 tag type
• IP22 rating
• Single pole isolation
• Single fuse
• Electroplated brass terminals with serrated bores
• Max. cable size; 16sqmm stranded copper, 25sqmm solid aluminium
•  Cable entry via PVC grommets as standard
• Outgoing cables exit below horizontal to form drip loop
• Sealing wire facility

Lucy Zodion Titan MC040SLF Single Phase Cut Out Dimensions
Height	150mm
Width	76mm
Depth	60mm
Order Details For MC040SLF Street Lighting Cut Out
Order Code	Description
MC040SLF 25A SLCO TYPE 1 (SNE)	Separate Neutral and Earth
MC040SLF 25A SLCO TYPE 2 (CNE)	Combined Neutral and Earth
