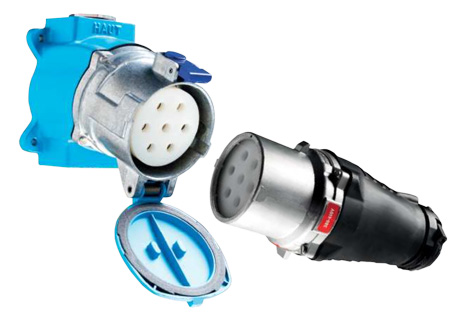

Marechal Star Delta Connectors - 7 Pole Decontactors & Connectors 30A - 150A

Marechal Star Delta Connectors are designed with a silver-nickel butt-contact technology.

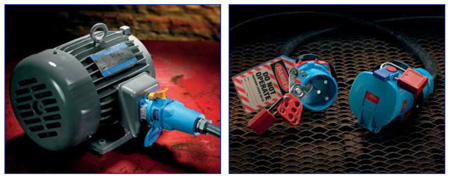

The 7 pole decontactors withstand high and repeated overloads without over-heating or change in its performance and is perfectly suited for motor connections.



Marechal Star Delta Connectors Technical Features

Product Type	Marechal DN9C	Marechal DSN7C3	Marechal DS7C3	Marechal DS7C6	Marechal DS7C9
Max Current per phase	30A	32A	50A	90A	150A
Max Voltage	415V	500V	500V	415V	500V
AC-22 Switching Capacity	30A / 415V	32A / 500V	50A / 500V	90A / 415A	-
Same Dimensions As	Marechal DN1	Marechal DSN3	Marechal DS6	Marechal DN6	Marechal DS2
Auxiliary Contacts	2	-	3	-	2
Keying Positions	2	-	5	-	-
Ambient Temperature	-40 °C to +60 °C for all
Wiring (terminals)	Screw-type
