Marechal High Temperature Plugs & Sockets - Marechal PN Compact Connectors 30A

By Chris Dodds on 26th September, 2012

Follow @ThorneanDerrick

Marechal Plugs & Sockets

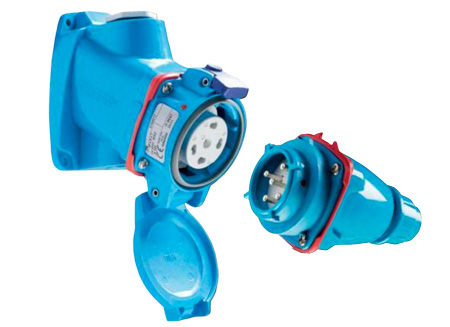

Marechal PN Industrial Plug and Socket - Compact Connector 30A

Marechal PN plugs and socket-outlets provide automatic IP66 IP67 watertightness - spring-assisted terminals prevent loose conductors caused by vibration, thermal cycling and conductor creep. Fit them and forget them.

Marechal PN compact connectors are a plug and socket-outlet made with silver-nickel butt contacts and metallic braid. These PN connectors comply with BECMA international standard.

Marechal PN Applications: iron, steel, electric ovens and motors.

Marechal PN Compact Connector Plug & Socket Technical Features

Rated Current In	30A
Maximum Voltage U	500V
Keying Positions	16
Ambient Temperature	-40°C to +60°C
IP Protection	IP66/IP67
Shock Resistance	IK09
Flexible Wiring	1mm² - 6mm²
Stranded Wiring	1.5mm² - 10mm²

• Further Reading

Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.

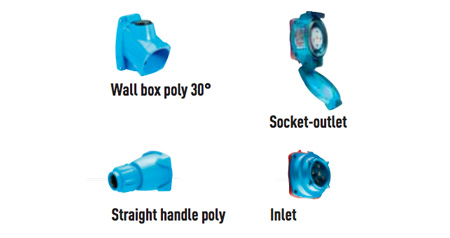

Marechal PN Plugs & Sockets - High Temperature Range
