Marechal Electric DS Plugs Supply Power To Doruk Electra Electric Buses In Turkey

By Chris Dodds on 7th May, 2013

Follow us on LinkedIn

Marechal Electric DS Plugs Supply Power To Doruk Electra Electric Buses In Turkey

Marechal Electric Plugs & Sockets

Marechal DS Plugs & Sockets Industrial Power Supply & Motor Connections

The first manufacturer of intercity buses in Turkey, OTOKAR, perfectly meets the local authorities’ needs for urban transportation. All OTOKAR’s products are known for their high performance and durability, especially the Vectio range (Doruk in the Turkish market).

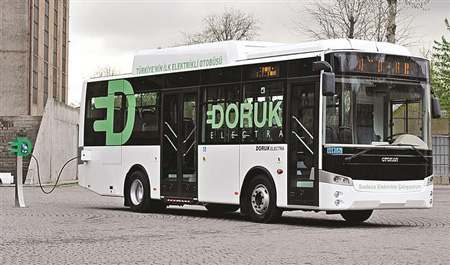

Doruk Electrical Buses

In order to maintain such performances, OTOKAR’s new series of Doruk electrical buses has been equipped with Marechal Plugs (blue) power socket outlets.

The Marechal Decontactor DS9 plug ranges ensure absolute safety upon connecting and disconnecting while recharging the vehicles. The Marechal decontactor makes and breaks contact on load.

Unique safety and technology. Marechal 150A power outlets are equipped with a unique technology. The Marechal disconnecting function is integrated into the socket.

This patented system allows the socket to be incorporated into the vehicle recharging panel. The compactness and integrated safety guarantee easy installation into a panel fitted with a lid.

This panel gives the whole connection system a second level of protection, ideal for outdoor applications.

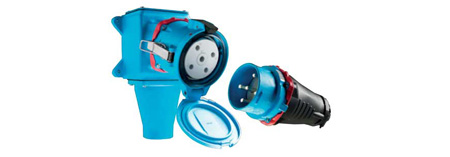

Pictured: Marechal DS9 Decontactors For Industry

Marechal DS9 Decontactors For Industry .jpg

The Marechal connector has also been designed to resist overloads. Moreover, each Marechal power outlet has a built-in IP4X/IPXXD safety shutter to protect end-users.

Any mayor and his or her municipal civil defense officers feel relaxed about such secure municipal equipments: it is virtually impossible for anyone (children included) to manipulate or access the live contacts, as parts of the electrically energized outlets.

The Marechal Decontractor DS plus is thus accessible to all users and does not require special authorization or specific training.

Simplicity and reliability are the guidelines which local authorities follow when it comes to choosing equipment operating all year long, 24/7.

Marechal DS Industry Plugs & Sockets Specifications
Part No. Max Voltage Rated Current Material Shock Resistance Ambient Temp IP Prot-ection

Marechal DS1

Marechal DS1 Plugs & Sockets

690V 30A GRP IK08 -40°C to +60°C IP54 / IP55

Marechal DS3

Marechal DS3 Plugs & Sockets

1000V 50A GRP IK08

-40°C to +60°C

IP54 / IP55

Marechal DS6

Marechal DS6 Plugs & Sockets

1000V 90A GRP Metal Casing IK08 / IK09

-40°C to +60°C

IP54 / IP55

Marechal DS9

Marechal DS9 Plugs & Sockets

1000V 150A GRP IK08

-40°C to +60°C

IP66 / IP67

Marechal DS9

Marechal DS9 Plugs & Sockets Metal

1000V 150A Metal Casing IK09

-40°C to +60°C

IP54 / IP55

Marechal DS2

Marechal DS2 Plugs & Sockets

1000V 250A Metal Casing IK09

-40°C to +60°C

IP54 / IP55
