T&D are the UK's largest distributor of Lucy Fortress Feeder Pillars to the electrical contracting industry.

Today, T&D have completed an express delivery of 2 pallets of Lucy Fortress galvanised steel feeder pillars to SSE Contracting to enable low voltage power distribution at their Corpach project, Scotland.

Pictured: Corpach Marina, Scotland

Corpach (Scottish Gaelic: A' Chorpaich) is a large village north of Fort William, in the Scottish Highlands. The canal lock at Corpach Basin on Loch Linnhe, east of the narrows leading to Loch Eil, is the western sea entrance of the Caledonian Canal. It is a natural harbour, unlike Fort William.

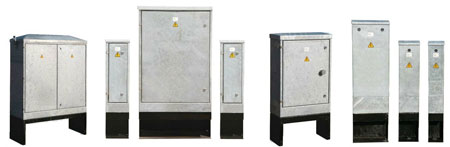

Lucy Zodion offer a wide range of pillars, from mini, slimline, single-door to double-door options. The Lucy fortress pillars are available in both mild and stainless steel.

Lucy Zodion Pillar Shell Specifications

• Doors fitted with tri-head locks
• Back board made from 18mm treated exterior grade plywood
• Detachable roof enabling preequipped back board to be installed on site (not mini pillars)
• ‘Danger’ warning label fitted in door recess
• Earth lead between pillar body and door
• High quality UV resistant paint to an average thickness of 60 microns (painted pillars only)
• Stainless steel fixings and locks
• Detachable root section (not mini pillars)
• Vandal resistant fully flush hinges
• Door Seal to IP65 (single-door, slimline and double-door)

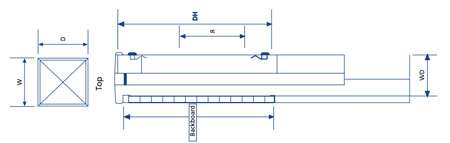

Lucy Zodion Fortress Mini Feeder Pillar Shells

Pillar Size Code	Lucy Zodion 4810	Lucy Zodion 4811	Lucy Zodion 4812	Lucy Zodion 4813	Lucy Zodion 4814	Lucy Zodion 4815	Lucy Zodion 4816
Nominal Size (WxD)	4x4 inches	6x4 inches	6x6 inches	8x6 inches	10x6 inches	14x6 inches	19x10 inches
Height Above Ground	785mm	785mm	785mm	785mm	785mm	985mm	1000mm
Root Section (R)	300mm	300mm	300mm	300mm	300mm	300mm	300mm
Width (W)	113mm	163mm	163mm	213mm	265mm	365mm	503mm
Depth (D)	120mm	120mm	170mm	170mm	170mm	170mm	250mm
Door Opening Height (DH)	510mm	510mm	510mm	510mm	510mm	710mm	800mm
Working Depth (WD)	85mm	85mm	130mm	130mm	130mm	130mm	199mm
Backboard Size (WxH)	90mm x 500mm	140mm x 500mm	140mm x 500mm	190mm x 500mm	240mm x 500mm	345mm x 700mm	480mm x 780mm
Weight	11kg	14kg	16kg	19kg	22kg	32kg	47kg

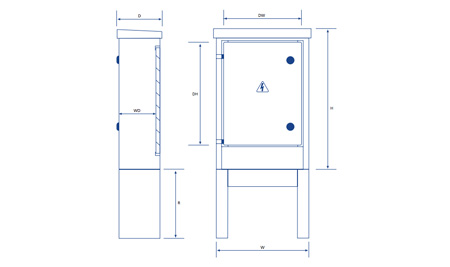

Lucy Zodion Fortress Single-Door Feeder Pillar Shells

Pillar Size Code	Lucy Zodion 05	Lucy Zodion 06	Lucy Zodion 08	Lucy Zodion 09	Lucy Zodion 10	Lucy Zodion 12
Height Above Ground	791mm	636mm	836mm	1088mm	1194mm	1294mm
Root Section (R)	350mm	300mm	300mm	350mm	350mm	350mm
Width (W)	310mm	400mm	600mm	661mm	800mm	1100mm
Depth (D)	220mm	180mm	250mm	281mm	350mm	400mm
Door Opening Height (DH)	585mm	410mm	610mm	860mm	907mm	1007mm
Door Opening Width (DW)	200mm	300mm	500mm	550mm	700mm	1000mm
Working Depth (WD)	170mm	155mm	225mm	225mm	325mm	375mm
Backboard Size (WxH)	300mm x 650mm	390mm x 475mm	590mm x 675mm	640mm x 930mm	790mm x 975mm	1080mm x 1075mm
Weight	36kg	42.5kg	71.5kg	84kg	108kg	142kg



Lucy Zodion Fortress Slimline Feeder Pillar Shells

Pillar Size Code	Lucy Zodion SL01	Lucy Zodion SL02	Lucy Zodion SL03	Lucy Zodion SL04	Lucy Zodion SL05	Lucy Zodion SL06
Height Above Ground	800mm	950mm	1093mm	1100mm	1150mm	1150mm
Root Section (R)	300mm	300mm	300mm	300mm	300mm	300mm
Width (W)	250mm	350mm	450mm	550mm	650mm	800mm
Depth (D)	160mm	235mm	260mm	275mm	300mm	325mm
Door Opening Height (DH)	590mm	740mm	740mm	840mm	940mm	940mm
Door Opening Width (DW)	149mm	249mm	349mm	449mm	549mm	699mm
Working Depth (WD)	106mm	181mm	206mm	221mm	246mm	271mm
Backboard Size (WxH)	240mm x 765mm	340mm x 915mm	440mm x 915mm	540mm x 1015mm	640mm x 1115mm	790mm x 1115mm
Weight	21kg	29kg	39kg	38kg	77kg	84kg





Lucy Zodion Fortress Double Door Feeder Pillar Shells

Pillar Size Code	Lucy Zod-ion 14	Lucy Zod-ion 16	Lucy Zod-ion 18	Lucy Zod-ion 20	Lucy Zod-ion 22	Lucy Zod-ion 24	Lucy Zod-ion 26	Lucy Zod-ion 28	Lucy Zod-ion 30
Height Above Ground	1300 mm	1300 mm	1300 mm	1300 mm	1600 mm	1600 mm	1600 mm	1600 mm	1600 mm
Root Section (R)	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm
Width (W)	1250 mm	1500 mm	1750 mm	2000 mm	1250 mm	1500 mm	1750 mm	2000 mm	2250 mm
Depth (D)	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm
Door Opening Height (DH)	980 mm	980 mm	980 mm	980 mm	1280 mm	1280 mm	1280 mm	1280 mm	1280 mm
Door Opening Width (DW)	1148 mm	1398 mm	1648 mm	1898 mm	1148 mm	1398 mm	1648 mm	1898 mm	2148 mm
Working Depth (WD)	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm
Back-board Size (WxH)	1225 mm x 1085 mm	1475 mm x 1085 mm	1725 mm x 1085 mm	1975 mm x 1085 mm	1225 mm x 1385 mm	1475 mm x 1385 mm	1725 mm x 1385 mm	1957 mm x 1385 mm	2225 mm x 1385 mm
Weight	176kg	202kg	234kg	266kg	201kg	231kg	269kg	305kg	343kg
