Silver Fox Fox Flo - LU London Underground Approved Zero Halogen Cable Markers & Labels

By Chris Dodds on 2nd October, 2012

Follow @ThorneanDerrick

Silver Fox Cable Labels & Cable Marking Systems

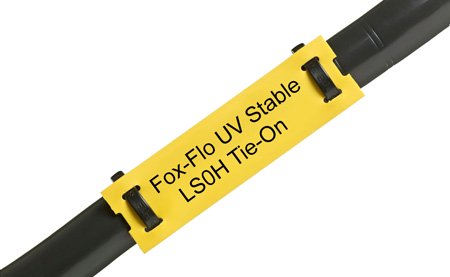

Silver Fox Fox-Flo Zero Halogen Tie-on Cable Labels

LU London Underground Approved Cable Markers & Labels



London Underground zero halogen approved tie-on cable markers and cable labels are specified for excellent flexibility and strength for rail cable identification - approved by LU London Underground for zero halogen UV stable cable marking and labelling.

Silver fox Fox Flo cable labels are made using a special Low Smoke Zero Halogen material which has the highest levels of durability. These LS0H cable labels are ideal for Rail/Metro applications.

Silver fox Fox Flo labels are both strong and flexible and can be attached using either standard nylon or stainless-steel cable ties. Authorised for use for London Underground Limited projects.

Silver Fox Fox Flo LS0H Tie-On Cable Labels Technical Data

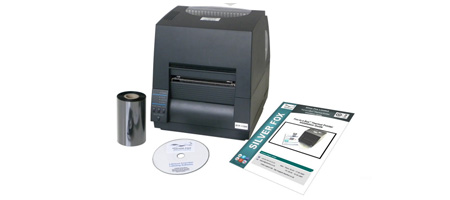

Printing Method	Silver Fox DTP-1 Thermal Printer
Thermal Ribbon	Silver Fox TSR3
Material	Silver Fox Fox-Flo® Material
Thickness	1mm
RoHS (EU 2002/95/EC)	RoHS Compliant

Silver Fox Low Smoke Zero Halogen Cable Label Order Information

Product Code	Label Dimensions	Labels Per Roll	Rolls Per Pack	Labels Per Pack	Colour Options
Silver Fox Fox-Flo LCLZ2-5010T*	50mm x 10mm	750	3	2250
Silver Fox Fox-Flo LCLZ2-7010T*	70mm x 10mm	550	3	1650
Silver Fox Fox-Flo LCLZ1-5015T*	50mm x 15mm	160	5	800
Silver Fox Fox-Flo LCLZ1-5025T*	50mm x 25mm	160	3	480
Silver Fox Fox-Flo LCLZ1-7015T*	70mm x 15mm	150	5	750
Silver Fox Fox-Flo LCLZ1-7025T*	70mm x 25mm	150	3	450
Silver Fox Fox-Flo LCLZ1-9015T*	90mm x 15mm	140	5	700
Silver Fox Fox-Flo LCLZ1-9025T*	90mm x 25mm	140	3	420
Silver Fox Fox-Flo LCLZ1-11015T*	110mm x 15mm	120	5	600
Silver Fox Fox-Flo LCLZ1-11025T*	110mm x 25mm	120	3	360



T&D are Link-up Registered and Approved Vendors to Network Rail and TFL London Underground (LU).
