ABB LOVOS Low Voltage LV Surge Arresters

By Chris Dodds on 9th January, 2013

Follow @ThorneanDerrick

ABB Low Medium & High Voltage Electrical Equipment

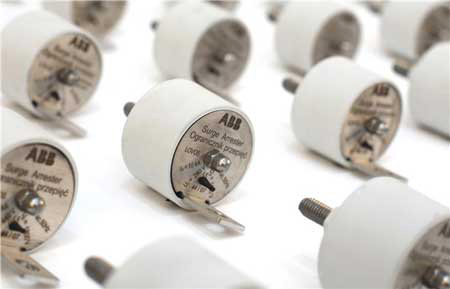

ABB LOVOS-5 & LOVOS-10 Low Voltage LV Surge Arresters



ABB low voltage surge arresters LOVOS-5 and LOVOS-10 are a new generation of LV surge arresters ensuring electrical protection of overhead lines, electric energy receivers, distributing transformers and low voltage electrical equipment. Specify and install ABB LOVOS type surge arresters to protect low voltage power equipment from the effects of lightning and switching overvoltages.

Applications for Low Voltage LV Surge Arresters

The ABB LOVOS range provides protection along LV overhead lines, cables, motors, switches, any equipment connected to the line, from the LV side of distribution transformers up to measuring instruments. The LOVOS surge arresters are suitable for indoor and outdoor applications and for altitude up to 2000m over sea level. Also for use in ambient temperature in place of work or storage from -40°C to +70°C.

ABB LOVOS-5 & LOVOS-10 Low Voltage Surge Arrester Advantages

• Easy assembly and connection
• Disconnecting device simultaneously fulfilling the function of damage indicator
• Large choice of accessories
• Casing resistant to UV radiation, non-flammable
• Maintenance-free product
• All accessories are made of corrosion-resistant materials



ABB LOVOS-5 & LOVOS-10 Low Voltage Surge Arrester Specifications

Arrester Type	Uc	Up at In	In / Imax	Up at Imax	Energy absorption capability	Up At Long Lasting Surge 2000μs
ABB LOVOS – 5/280	280V	1100V	5/25kA	1500V	1800J	850V
ABB LOVOS – 5/440	440V	1800V	5/25kA	2500V	3000J	1300V
ABB LOVOS – 5/500	500V	2000V	5/25kA	2600V	3200J	1600V
ABB LOVOS – 5/660	660V	2500V	5/25kA	3200V	4000J	1800V
ABB LOVOS – 5/1000	1000V	4000V	5/25kA	5200V	6400J	3200V
ABB LOVOS – 10/280	280V	1100V	10/40kA	1700V	2200J	900V
ABB LOVOS – 10/440	440V	1800V	10/40kA	2700V	3300J	1400V
ABB LOVOS – 10/500	500V	2000V	10/40kA	3200V	3900J	1700V
ABB LOVOS – 10/660	660V	2500V	10/40kA	3800V	4500J	1900V
ABB LOVOS – 10/1000	1000V	4000V	10/40kA	5800V	7800J	3400V
