Leigh Vaughan cable identifier is the industry standard tool for all Electricity Distribution Engineers, Cable Fault Location & Jointers forming an essential part of their equipment when reliable high voltage cable identification is needed, including 11kV and 33kV.

The cable identifier is a well proven and reliable instrument for the positive identification of high voltage power cables prior to cable spiking or commencing work on de-energised cables. The tool is particularly beneficial in situations where one of several cables in a location requires identification.

Leigh Vaughan Cable Identifier Features

  • Designed and developed for use by Electrical Distribution System Engineers
  • Complies with relevant CE requirements
  • Visual and audible cable identification from rise and fall of induced signal due to cable lay
  • Conveniently housed in fitted carry case
  • Transmitter and receiver each powered by readily available 4 x AA size cells
  • Neat compact design
  • Typically used at 11kV-33kV medium/high voltages


Leigh Vaughan Cable Identifier

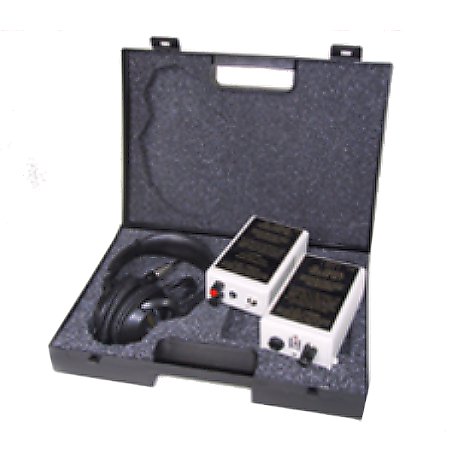

Leigh Vaughan Cable Identifier consists of a sturdy plastic carrying case foam-fitted to house the transmitter, receiver and headset. The transmitter is in a strong plastic case with spring loaded output connection terminals. Power for several hours use is by 4 AA cells (HP7) that are readily available and easily fitted. The transmitter emits an interrupted signal that when fed into the cable can be picked up by the receiver at the identification point. When the unit is in operation a red LED flashes at the interrupt frequency.

The receiver is housed in a similar case to the transmitter and requires the same type of battery. It contains a coil for signal pickup and an amplifier with gain control for the meter and headset. To help to conserve battery life an interlock is arranged to disconnect the battery when the headset plug is removed from its socket.

Cable Identification - Operation

The cable to be identified must be discharged to earth and ‘dead’ before using the Leigh Vaughan Cable Identifier.

The principal of operation is to attach the transmitter at one end of the dead cable, and at the remote end the cores on which the transmitter has been connected are shorted together. At any point along the cable the transmitted signal can be picked up by the receiver, and the cable identified.


The Electricity Supply Safety Rules should be observed when using this instrument.

Leigh Vaughan Cable Identifier Specification

  • Transmitter Signal 1 .6KHz interrupted Power output minimised to avoid adjacent cable pickup
  • Battery Power: - 4 x AA per unit


  • Transmitter I Receiver 175 x 90 x 45mm
  • Carrying Case:-360 x 270 x 90mm
  • Weight including carry case and batteries:-1 .7 Kg
