Hadar HDL106E Zone 1 Ex emb LED Floodlight Bulkhead Luminaire for Hazardous Area Lighting

By Chris Dodds on 24th August, 2012

Follow @ThorneanDerrick

Hazardous Area Lighting

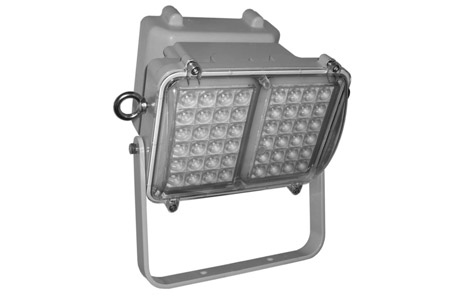

Hadar HDL106E Standard Zone 1 Ex emb LED Bulkhead Luminaire

Zone 1 LED Floodlight for Hazardous Areas

Hadar Lighting HDL106E - 48 LED, 96 LED, 144 LED

Hadar HDL106E Standard Zone 1 Ex emb LED Bulkhead Luminaire for Hazardous Area Flood Lighting

• Battery back-up power provides 3 hours at 50% illumination, 90 minutes at full illumination
• Modular construction allows the Zone 1 floodlight modules to be supplied interlinked with each other to provide greater light output
• Can be used as a single unit – small floodlight or bulkhead or linked together to replicate a large 250W/400W floodlight
• Can be supplied in multiple configurations of standard or emergency modules
• Each Zone 1 floodlight module utilises 48 off 1.2W LED’s
• Integrated power supply for reliable Zone 1 lighting
• Low power consumption
• Rugged construction – resistant to vibration
• Zone 1 LED floodlights independently photometrically tested
• All LED floodlight units supplied with 2 cable entries as standard
• IP66 and IP67 Zone 1 LED hazardous area floodlights

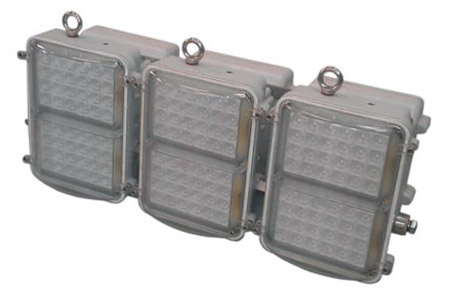

Hadar HDL106E LED Hazardous Area Floodlight

Comparison to Ex d Floodlights

• 70% less weight
• 50% less power consumption
• One man installation for Zone 1 hazardous area lighting
• LED technology will give a predicted lamp life of 10 years+
• No light pollution
• Instant start and restrike
• No light degradation at low temperatures
• Penetrating white light
• Photocell option available for LED Zone 1 floodlights
• No flamepaths to maintain
• Low cost of installation, operation and maintenance

Hadar HDL106E Zone 1 Ex emb LED Floodlight Bulkhead Luminaire - Hazardous Area Classification

• Hazardous Area Certification: II 2GD Ex emb IIC
• Protection: T4 Gas & Dust IP66 / 67
• Operating Temp: -20°C to +50°C
• Voltage: 100V to 254V AC or 24V AC/DC
• Standard Version Zone 1 LED Floodlight Available
• Marine Grade Aluminium Body
• Polycarbonate Lens Cover
• Stainless Steel Painted Bracket



Hadar HDL 106E Emergency Modular LED Luminaire Electrical Specification

Lamp Options	Power Consumption	Power Factor	Available Power Supplies
48 x 1.2W LED's	60W Max	0.95	100V - 254V 47/63Hz AC Only
96 x 1.2W LED's	120W Max
144 x 1.2W LED's	180W Max
