Hadar HDL106S Zone 1 Ex emb LED Floodlight Bulkhead Luminaire for Hazardous Area Lighting

By Chris Dodds on 24th August, 2012

Follow @ThorneanDerrick

Hazardous Area Floodlights

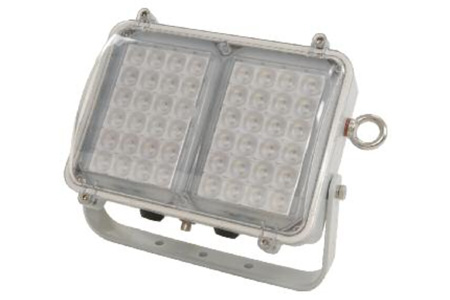

Hadar HDL106S Standard Zone 1 Ex emb LED Bulkhead Luminaire

Zone 1 LED Floodlight Bulkhead Luminaire for Hazardous Areas

Versions: Hadar HDL106S - 24 LED, 48 LED, 96 LED, 144 LED



Hadar HDL106S Zone 1 Ex emb LED Floodlight Bulkhead Luminaire for Hazardous Area Lighting

• Modular construction allows the floodlights to be supplied interlinked with each other to provide greater light output
• Can be used as a single unit – small floodlight or bulkhead or linked together to replicate a large 250W/400W floodlight
• Each LED floodlight module utilises 48 off 1.2W LED’s
• Integrated power supply for hazardous area lighting
• Low power consumption by LED Zone 1 floodlights
• Rugged construction – resistant to vibration
• Zone 1 floodlights independently photometrically tested
• All LED floodlight units supplied with 2 cable entries
• IP66 and IP67 Zone 1 floodlights
• Optional wired guard available for extra protection
• Infra red variants available (for use with security cameras)
• Wide, medium and narrow beam LED light output available
• Multiple mounting options available
• Emergency Zone 1 LED floodlight available

Hadar HDL106S LED Ex emb Floodlight - Comparison to Ex d Floodlights

• 60% less weight
• 50% less power consumption
• One man installation for Zone 1 hazardous area lighting
• LED technology will give a predicted lamp life of 10 years+
• No light pollution
• Instant start and restrike
• No light degradation at low temperatures
• Penetrating white light
• Photocell option available for LED Zone 1 floodlights
• No flamepaths to maintain
• Low cost of installation, operation and maintenance



Hadar HDL106S Zone 1 Ex emb LED Floodlight Bulkhead Luminaire - Hazardous Area Classification

• Hazardous Area Certification: II 2GD Ex emb IIC
• Protection: T4 Gas & Dust IP66 / 67
• Operating Temp: -20°C to +50°C
• Voltage: 100V to 254V AC or 24V AC/DC
• Emergency Version Zone 1 LED Floodlight Available
• Marine Grade Aluminium Body
• Polycarbonate Lens Cover
• Stainless Steel Painted Bracket



Hadar HDL106S Modular LED Luminaire Electrical Specifications

Lamp Options	Power Consumption	Power Factor	Available Power Supplies
24 x 1.2W LED''s	30W	0.95	100V - 245V 50/60Hz AC Only or 24V AC/DC
48 x 1.2W LED''s	60W
96 x 1.2W LED''s	120W
144 x 1.2W LED''s	180W



Hazardous Area Zones Classification

Zone 1 - where flammable atmosphere is likely to occur during normal operation.
